3-in-1 Multipurpose
BW-119/A (3-in-1)
Automatic · 3-in-1 · 6-Brick Mould
6 bricks / strokebricks, blocks & pavers
Three product families, one compact press.
View Machine
The Machine

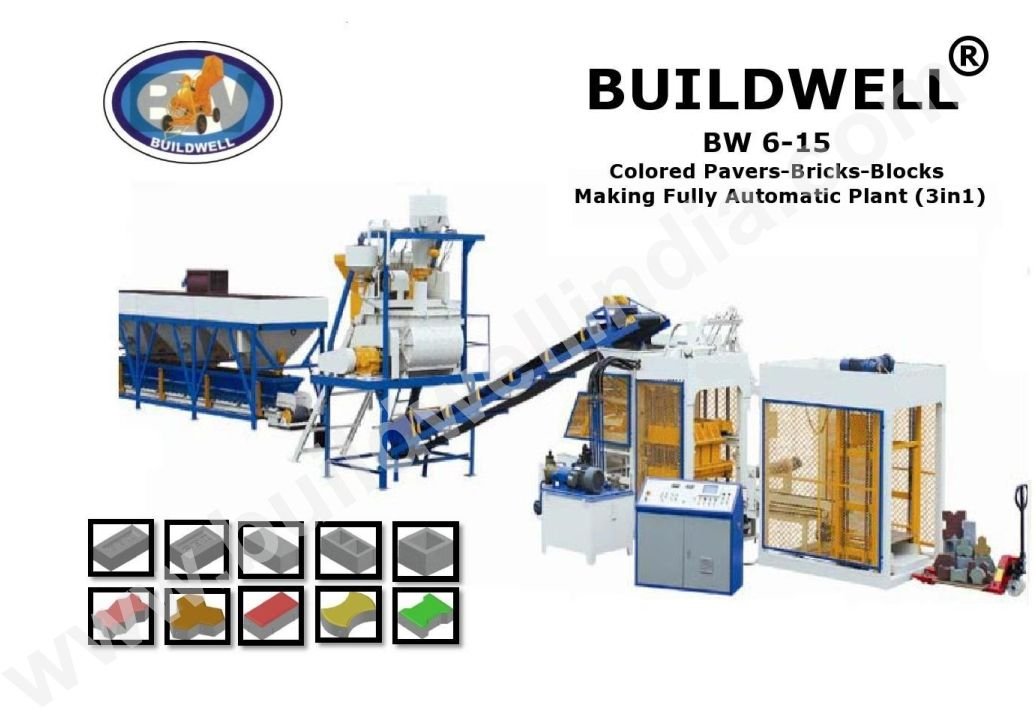

Buildwell's largest 3-in-1 pallet at 920 × 700 mm — 15 standard bricks or 24 of the 190 mm size per stroke, plus 20 rectangular pavers. Marketed as the coloured pavers, bricks and blocks fully automatic plant.
26,000 bricks / shift15 bricks per stroke
15 Bricks Automatic PlantPlant type

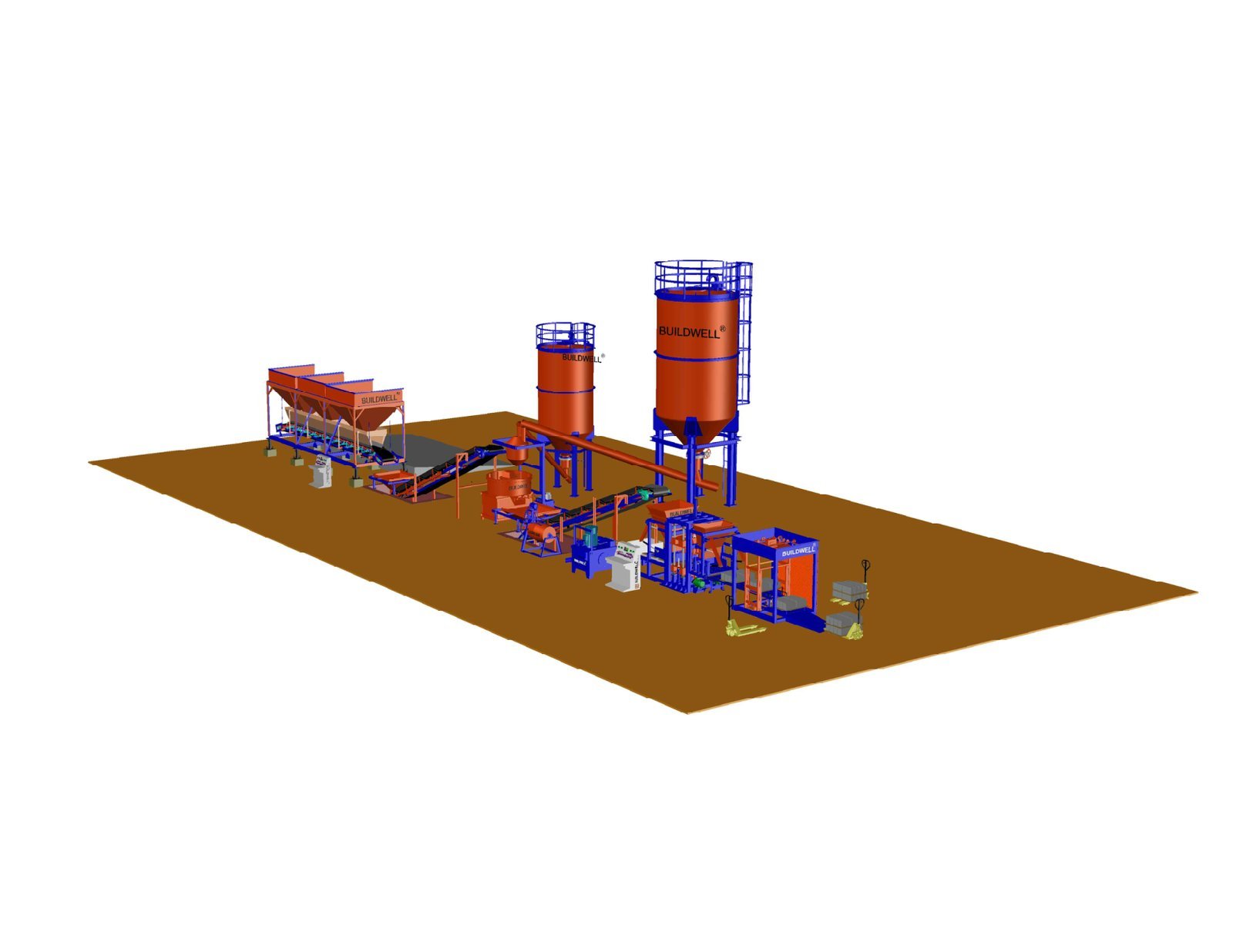

Plant Layout
How the BW-6-15 sits on site — press, mixer, conveyor and curing area.
Civil drawings supplied
Foundation, shed and layout drawings are issued to you in advance of dispatch, so erection can be planned before the machine reaches site.
Technical Specification
| # | Parameter | BW-6-15 |
|---|---|---|
| 1 | Machine Type | Fully Automatic, multipurpose 3-in-1 |
| 2 | Pallet Size | 700 × 920 × 25 mm |
| 3 | Bricks per Stroke | 24 (190×90×90) · 15 (230×110×75) · 12 (250×120×75) |
| 4 | Blocks per Stroke | 8 (400×150×200) · 6 (400×200×200) · 8 (300×200×150) |
| 5 | Pavers per Stroke | 20 rectangular · 15 zig-zag · 15 I-shape |
Source: PALLET — qty/stroke and pallet size read from the BW-6-15 pallet drawings, plus the 'BW 6-15 Coloured Pavers-Bricks-Blocks' product card (title only, no spec table).
Awaiting client confirmationShift capacity (26,000) and pallet size confirmed by the client's notes file. Still outstanding for BW-6-15: motor-by-motor electrical schedule, total connected load, shed size, land requirement and labour.
Production Capacity
Every figure below is read directly from Buildwell's own product-on-pallet CAD drawings for the BW-6-15 — the same drawings issued with the machine. Each tile shows how many finished units come off a single press stroke.

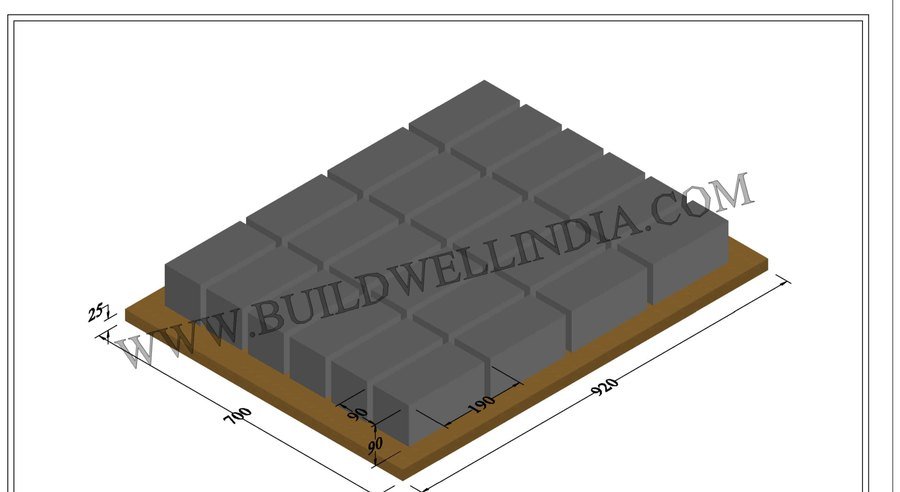

Fly Ash Brick190 × 90 × 90 mm
24pcs per stroke
Fly Ash Brick230 × 75 × 110 mm (on edge)
21pcs per stroke

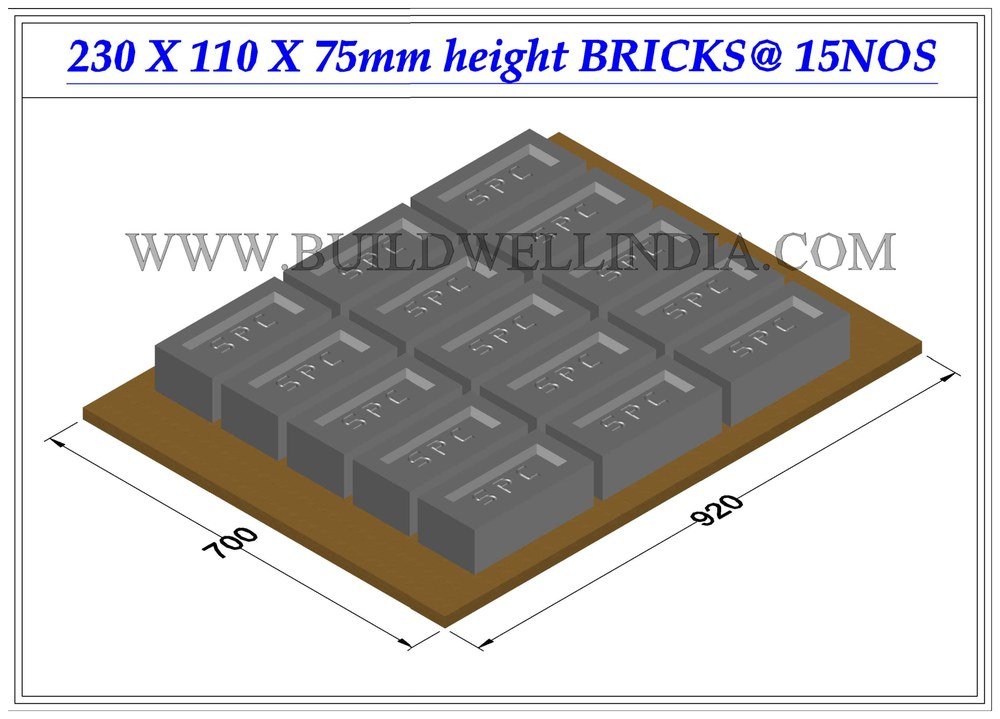

Fly Ash Brick230 × 110 × 75 mm
15pcs per stroke

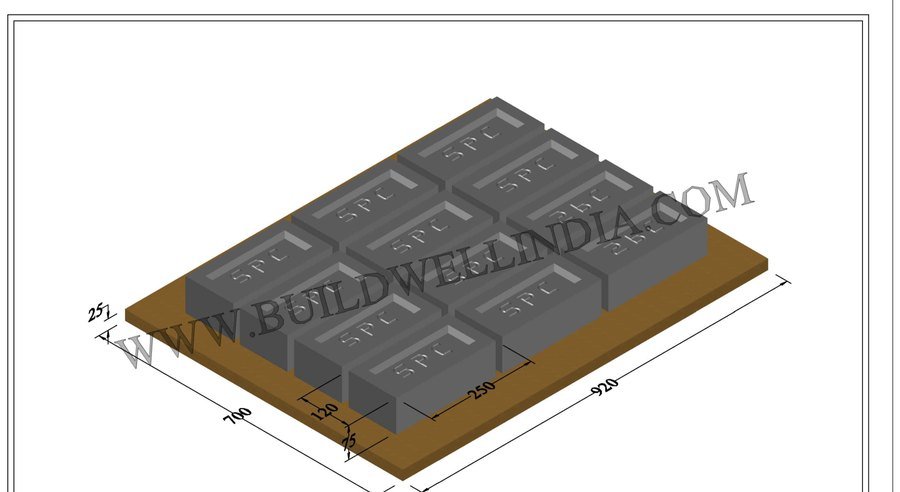

Fly Ash Brick250 × 120 × 75 mm
12pcs per stroke

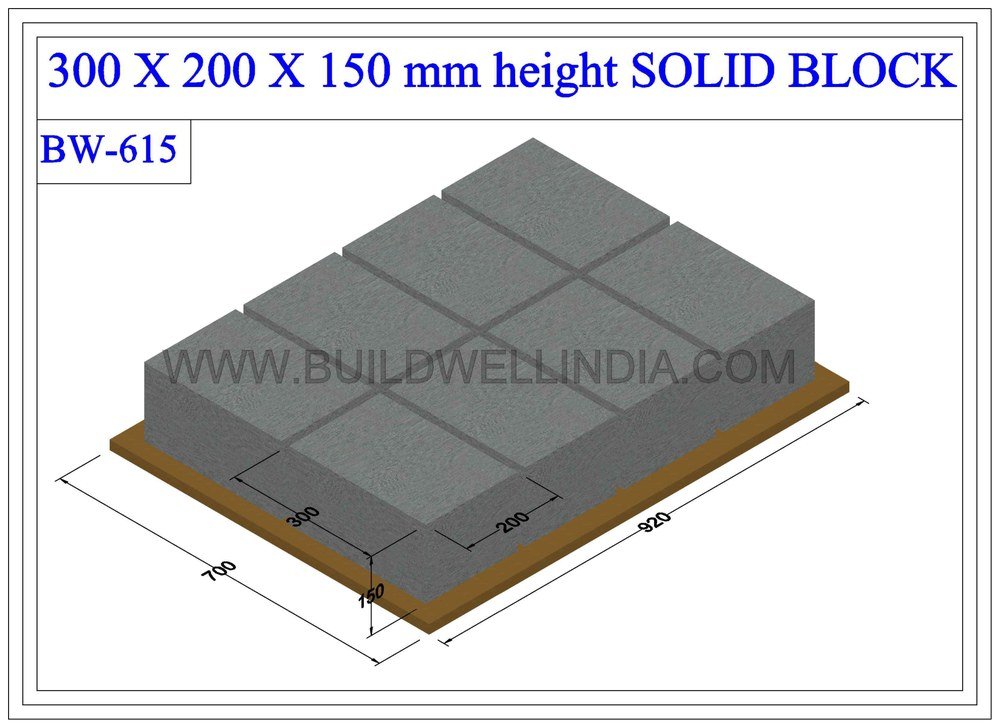

Solid Block300 × 200 × 150 mm
8pcs per stroke

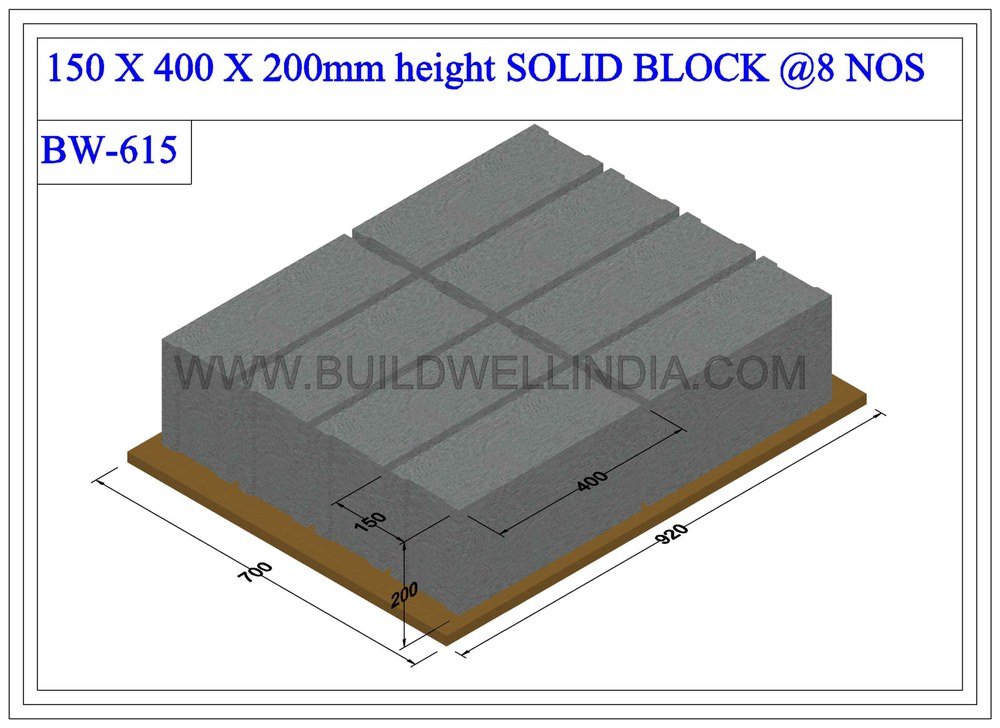

Solid Block400 × 150 × 200 mm
8pcs per stroke
Hollow Block400 × 150 × 200 mm
8pcs per stroke

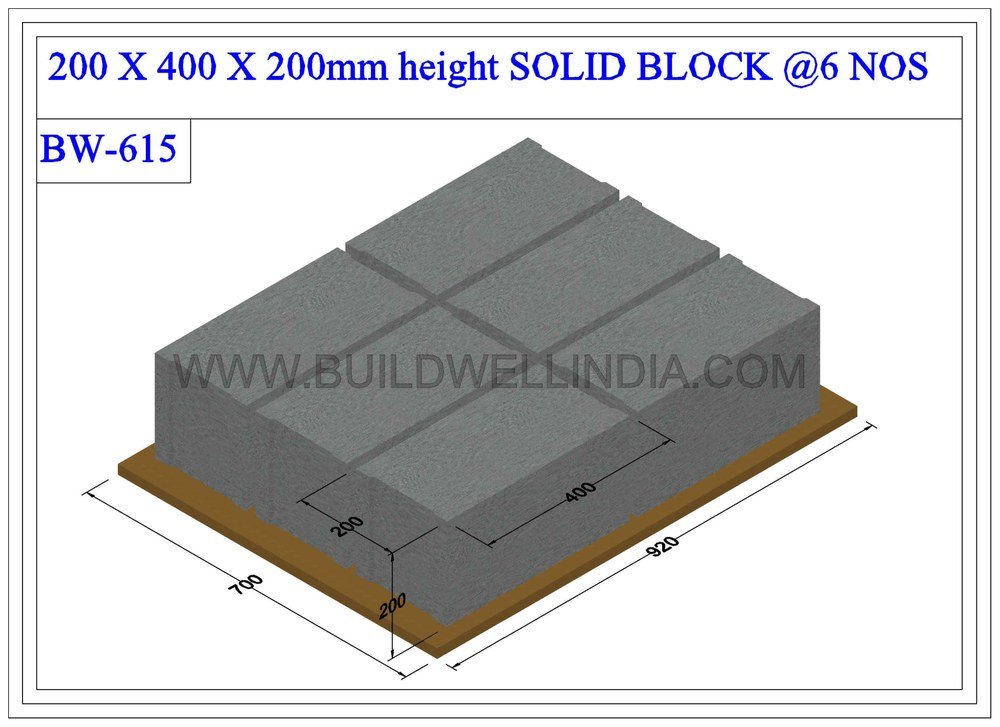

Solid Block400 × 200 × 200 mm
6pcs per stroke
Hollow Block400 × 200 × 200 mm
6pcs per stroke

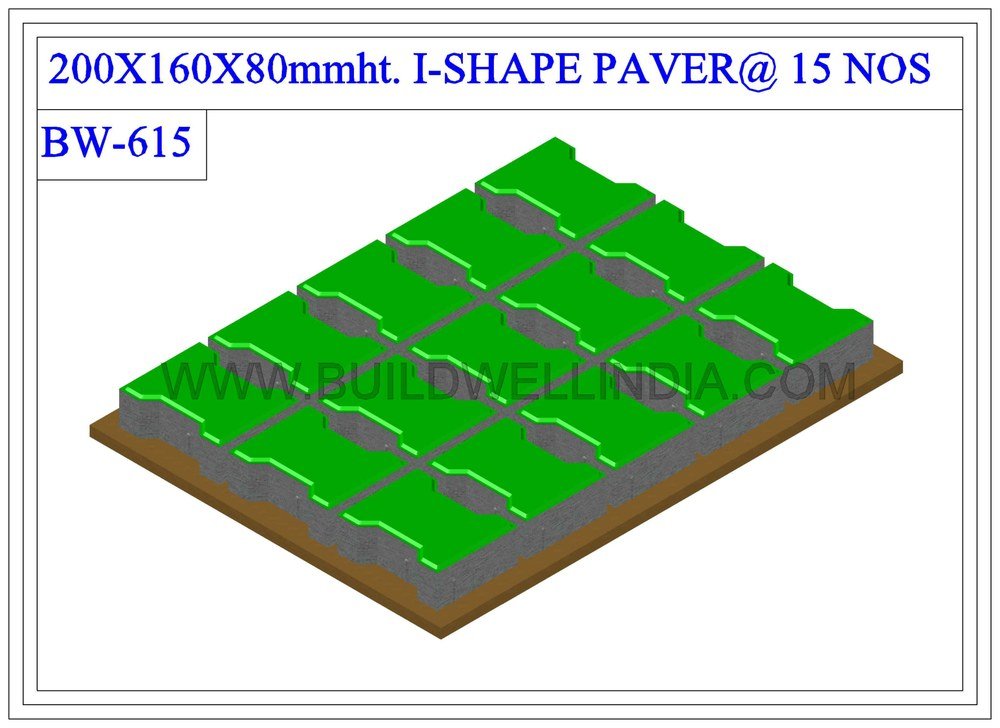

I-Shape Paver200 × 165 mm
15pcs per stroke

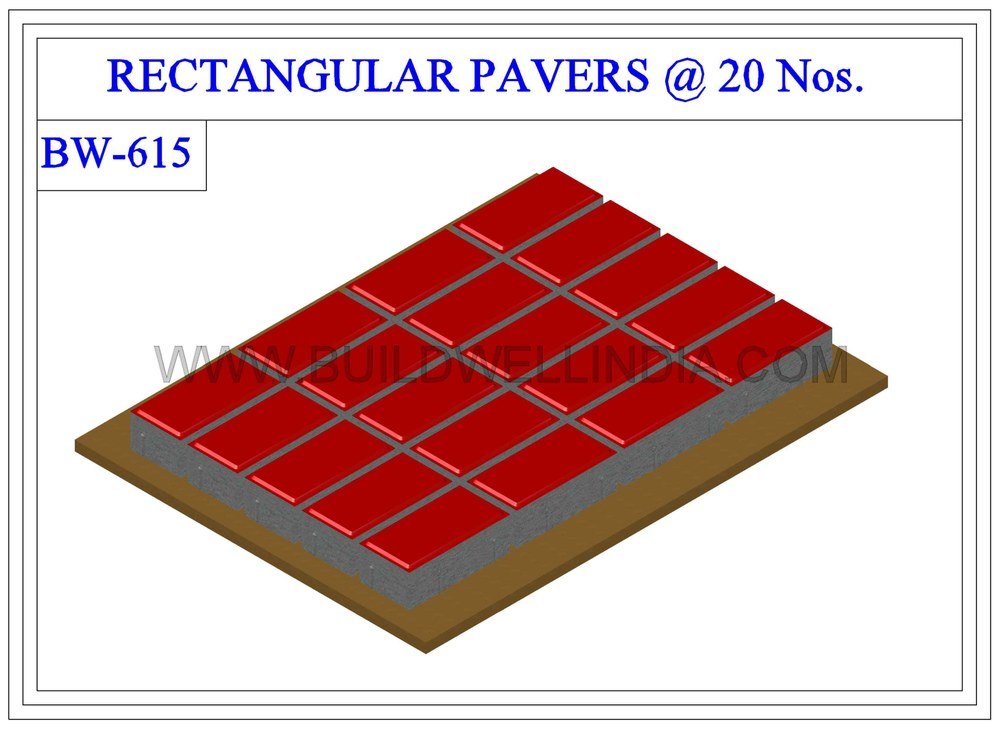

Rectangular Paver200 × 100 mm
20pcs per stroke

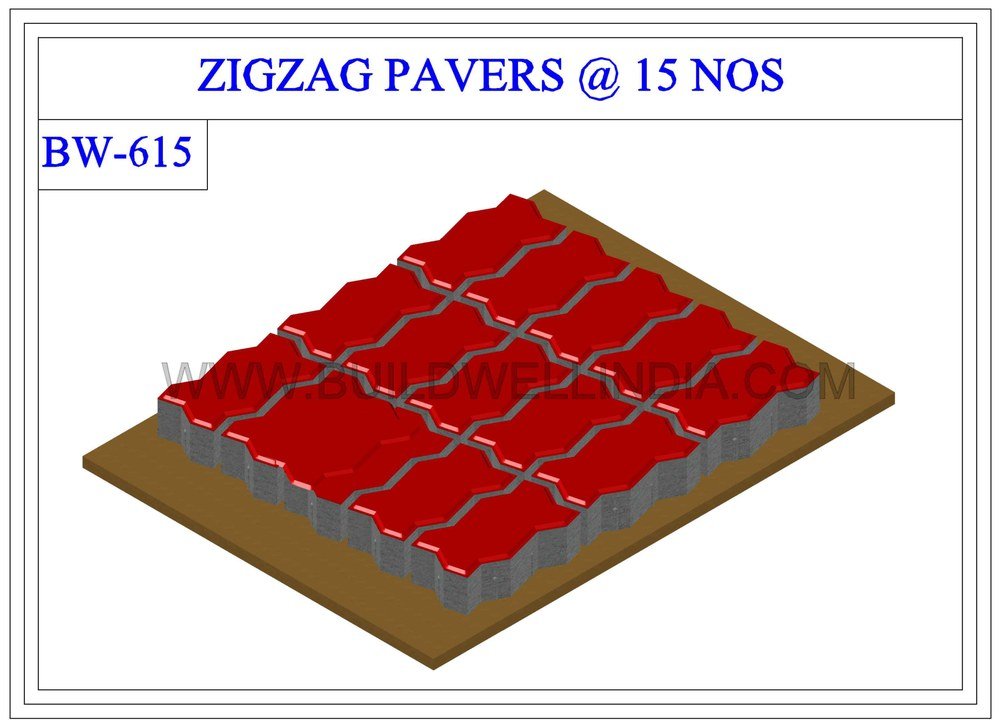

Zig-Zag Uni-Paver225 × 112.5 mm
15pcs per stroke
Units per hour and per shift depend on cycle time, mix and curing arrangement at your site. Ask our team for a shift projection for your chosen size.
Technology Features
01
Hydraulic Vibro-Compaction
Simultaneous top pressure and table vibration compacts the mix to a uniform density right through the unit — not just at the surface.
02
Multi-Mould Interchange
Moulds swap out to change product size and shape, so one press covers several product families without a second machine.
03
Hardened Mould Steel
Mould boxes and tamper heads are built from hardened steel to hold dimensional tolerance across long production runs.
04
Three-Phase Power Pack
A dedicated hydraulic power pack drives the press cycle, with grade-68 hydraulic oil and filtration on the return line.
05
Pan Mixer Integration
The pan mixer is matched to the press cycle time so the machine is never waiting on mix, and the mix is never sitting.
06
Pallet Conveyor & Green Handling
Green units leave the press on a steel pallet and travel out on conveyor, so they are never lifted by hand while wet.
07
Colour Face Layer Option
A separate colour mixer drum lays a pigmented face on pavers, giving colour where it is seen without pigmenting the full section.
08
Operator Control Panel
Cycle, vibration time and press dwell are set at the panel, so output quality does not depend on operator feel.
09
Civil Drawings Supplied
Foundation and shed layout drawings are issued ahead of dispatch so erection is planned before the machine arrives.
10
Trained On Site
Your operators are trained on operation, mould change and routine maintenance as part of commissioning.
What the BW-6-15 makes
Get BW-6-15 pricing
Direct from the manufacturer. No reseller markup, no call centre — your enquiry reaches our Bhuj works.
