The Machine
The largest machine in the automatic tier before you step up to a fully automatic plant. A long 920 × 475 mm pallet takes 9 standard bricks or 16 of the 190 × 90 × 90 size.
14,000 bricks / shift9 bricks per stroke
9 Bricks Automatic PlantPlant type
Machine Video
Filmed on a working BW-120 line — no stand-ins, no stock footage.
BW-120 in productionReal footage from a Buildwell installation
Plant Layout
How the BW-120 sits on site — press, mixer, conveyor and curing area.
Representative drawing
A model-specific layout drawing for this machine was not supplied in the asset pack. The drawing shown is a general Buildwell plant arrangement. Buildwell issues a site-specific civil and foundation drawing once an order is confirmed.
Technical Specification
| # | Parameter | BW-120 |
|---|---|---|
| 1 | Main Machine Power Pack | 15 HP, 3 Ph |
| 2 | Main Press Vibrator | 2 HP, 3 Ph |
| 3 | Hopper Vibrator | 0.5 HP, 3 Ph |
| 4 | Conveyor | 2 HP, 3 Ph |
| 5 | Pan Mixer | 10 HP, 3 Ph |
| 6 | Total Connected Load | 30 HP |
| 7 | Production Capacity | 14,000 bricks / shift |
| 8 | Shed Size | 60' × 40' × 15' height |
| 9 | Land Required | 20,000–25,000 sq.ft. |
| 10 | Labour | 2 skilled, 10 unskilled |
| 11 | Pallet Size | 475 × 920 × 20 mm |
| 12 | Hydraulic Oil | Grade 68 — 250 litre |
Source: FLYER — BW-120 technical flyer. Buildwell's current website quotes 47 HP and 18,000/shift for this model; the flyer states 30 HP.
Awaiting client confirmationTotal connected load still differs — 30 HP on the technical flyer, 47 HP on the current website. The 30 HP flyer figure is published here.
Production Capacity
Every figure below is read directly from Buildwell's own product-on-pallet CAD drawings for the BW-120 — the same drawings issued with the machine. Each tile shows how many finished units come off a single press stroke.

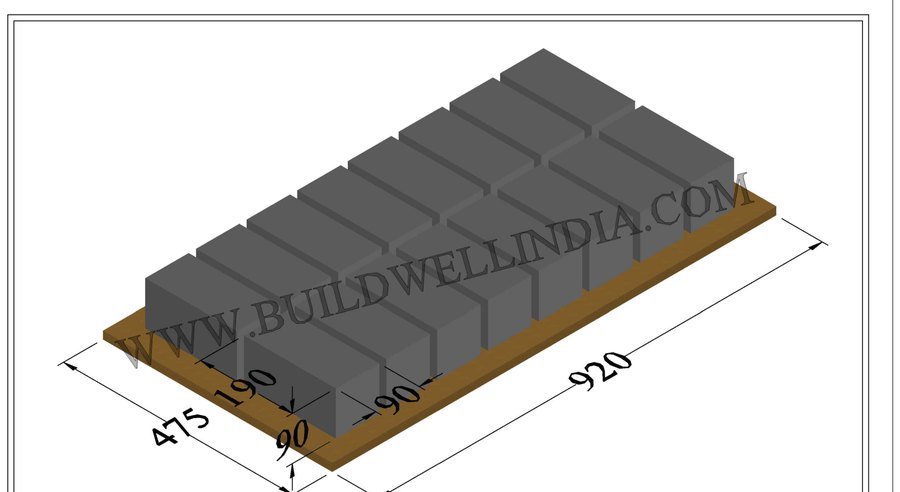

Fly Ash Brick190 × 90 × 90 mm
16pcs per stroke

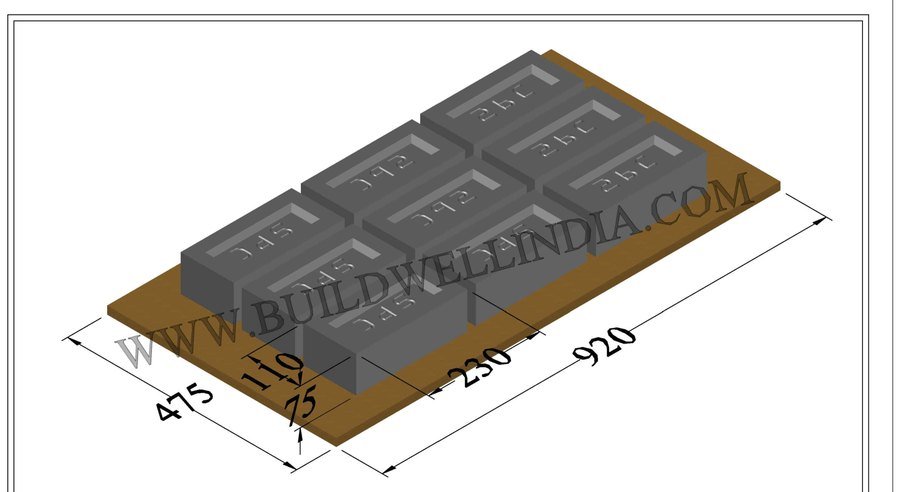

Fly Ash Brick230 × 110 × 75 mm
9pcs per stroke

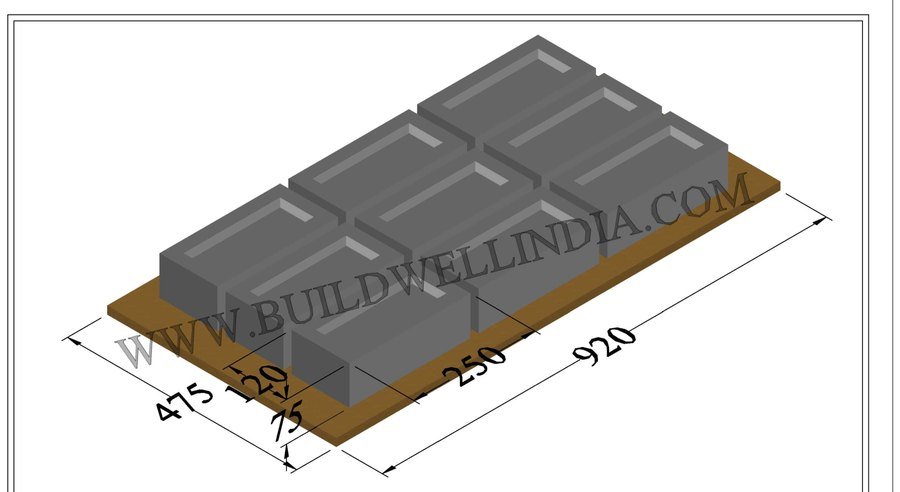

Fly Ash Brick250 × 120 × 75 mm
9pcs per stroke
Units per hour and per shift depend on cycle time, mix and curing arrangement at your site. Ask our team for a shift projection for your chosen size.
Technology Features
01
Hydraulic Vibro-Compaction
Simultaneous top pressure and table vibration compacts the mix to a uniform density right through the unit — not just at the surface.
02
Multi-Mould Interchange
Moulds swap out to change product size and shape, so one press covers several product families without a second machine.
03
Hardened Mould Steel
Mould boxes and tamper heads are built from hardened steel to hold dimensional tolerance across long production runs.
04
Three-Phase Power Pack
A dedicated hydraulic power pack drives the press cycle, with grade-68 hydraulic oil and filtration on the return line.
05
Pan Mixer Integration
The pan mixer is matched to the press cycle time so the machine is never waiting on mix, and the mix is never sitting.
06
Pallet Conveyor & Green Handling
Green units leave the press on a steel pallet and travel out on conveyor, so they are never lifted by hand while wet.
07
Colour Face Layer Option
A separate colour mixer drum lays a pigmented face on pavers, giving colour where it is seen without pigmenting the full section.
08
Operator Control Panel
Cycle, vibration time and press dwell are set at the panel, so output quality does not depend on operator feel.
09
Civil Drawings Supplied
Foundation and shed layout drawings are issued ahead of dispatch so erection is planned before the machine arrives.
10
Trained On Site
Your operators are trained on operation, mould change and routine maintenance as part of commissioning.
What the BW-120 makes
Get BW-120 pricing
Direct from the manufacturer. No reseller markup, no call centre — your enquiry reaches our Bhuj works.
