The Machine
The flagship. A 2-acre fully automatic plant with way-bin conveyor, screw conveyor, air compressor and automatic pallet stacker — designed to run a full shift without the line stopping for handling.
20,000 bricks / shift12 bricks per stroke
12 Bricks Fully Automatic PlantPlant type
Machine Video
Filmed on a working BW-130 line — no stand-ins, no stock footage.

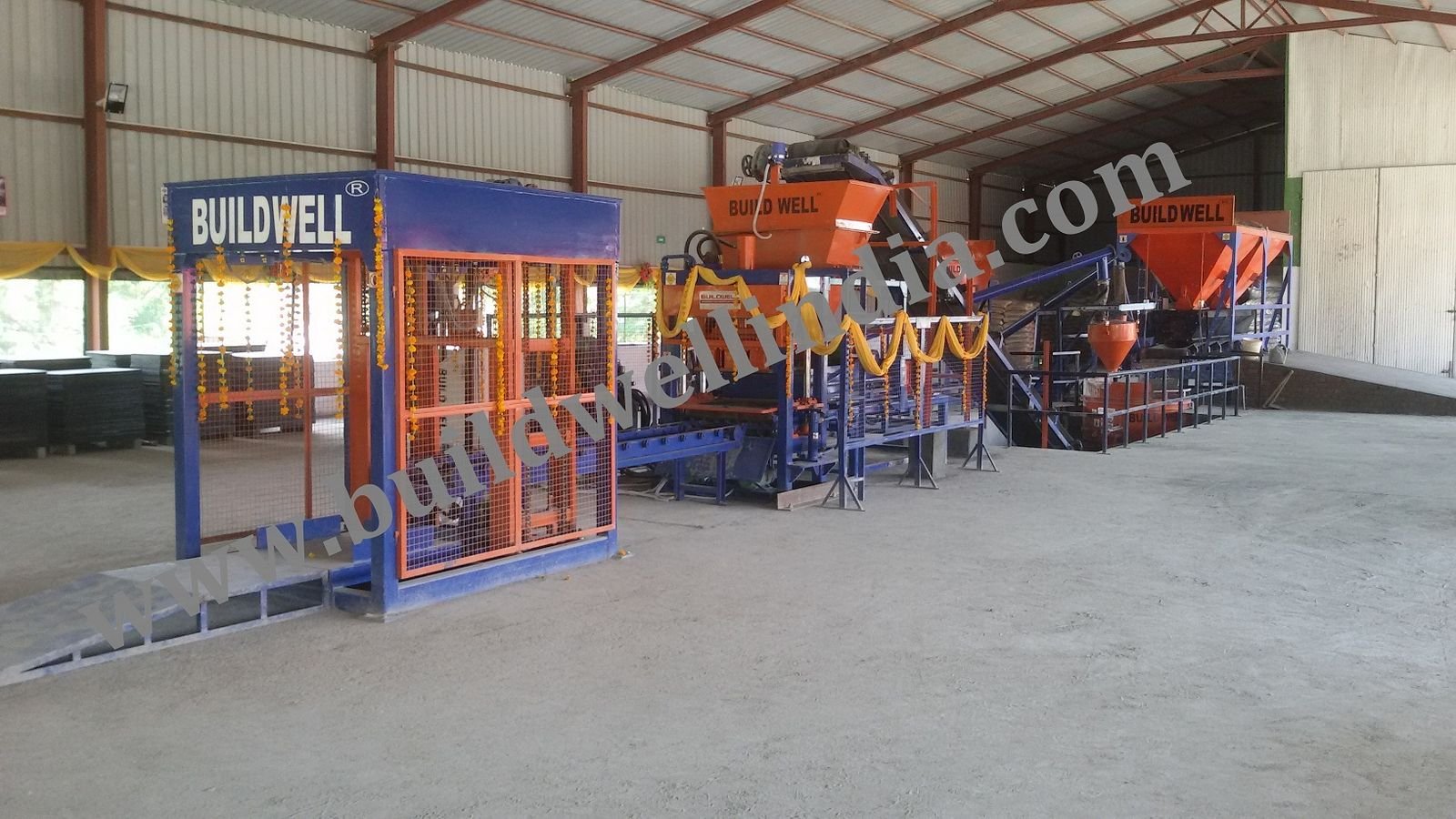

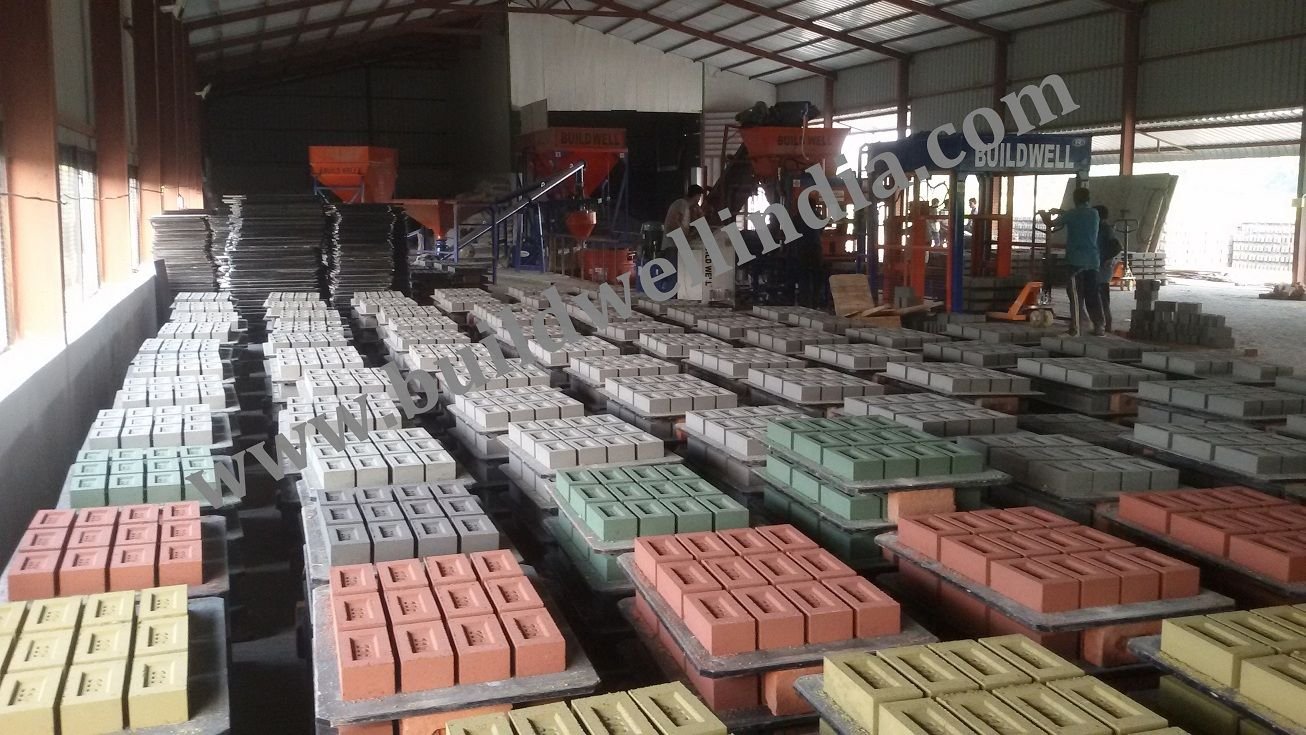

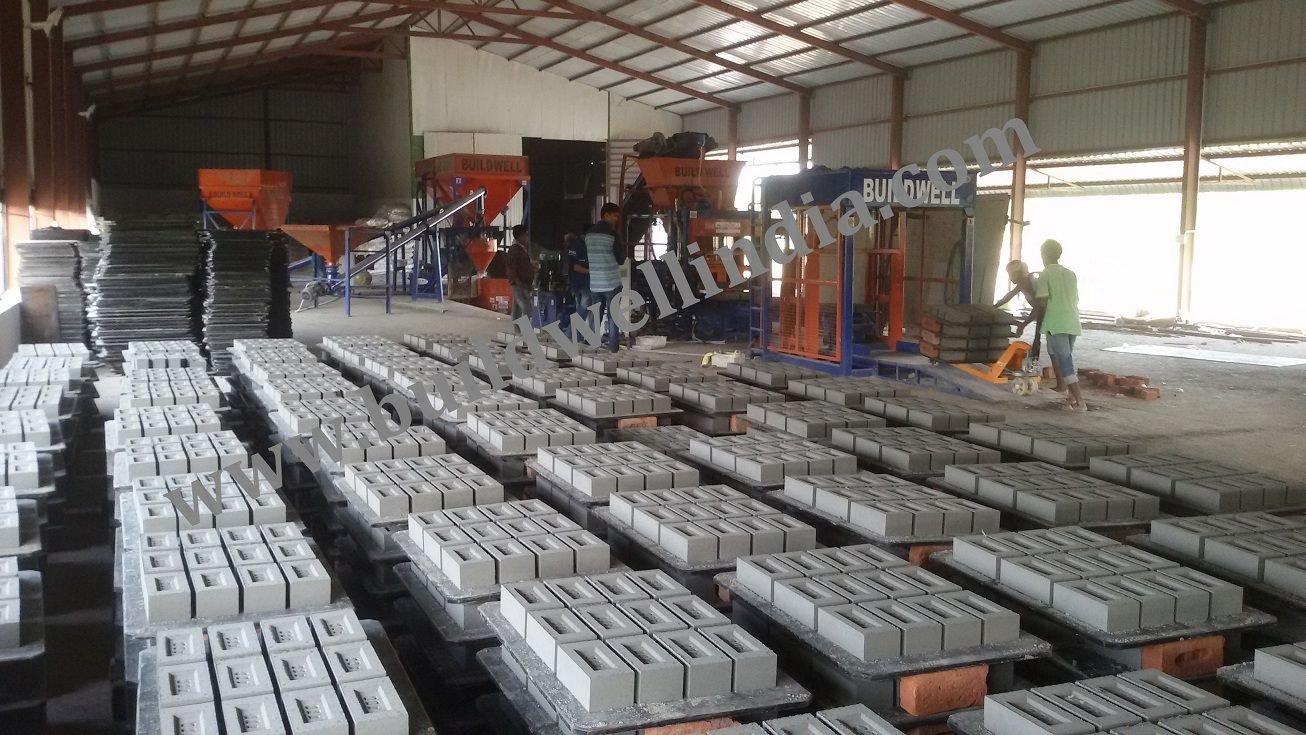

BW-130 in productionReal footage from a Buildwell installation

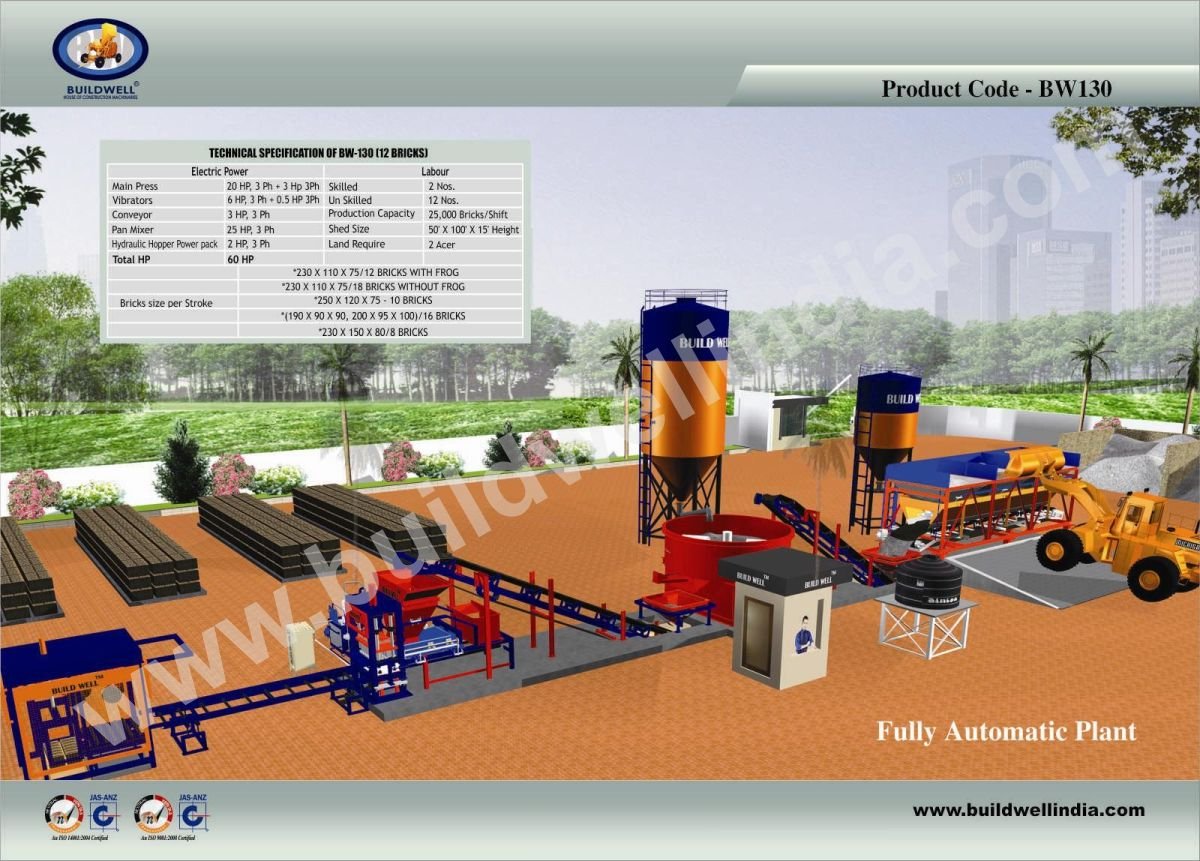

Plant Layout
How the BW-130 sits on site — press, mixer, conveyor and curing area.
Civil drawings supplied
Foundation, shed and layout drawings are issued to you in advance of dispatch, so erection can be planned before the machine reaches site.
Technical Specification
| # | Parameter | BW-130 |
|---|---|---|
| 1 | Main Press | 20 HP, 3 Ph + 3 HP, 3 Ph |
| 2 | Vibrators | 6 HP, 3 Ph + 0.5 HP, 3 Ph |
| 3 | Conveyor | 3 HP, 3 Ph |
| 4 | Pan Mixer | 25 HP, 3 Ph |
| 5 | Hydraulic Hopper Power Pack | 2 HP, 3 Ph |
| 6 | Total Connected Load | 60 HP |
| 7 | Production Capacity | 20,000 bricks / shift |
| 8 | Shed Size | 50' × 100' × 15' height |
| 9 | Land Required | 2 acre |
| 10 | Labour | 2 skilled, 12 unskilled |
| 11 | Pallet Size | 610 × 920 × 20/25 mm |
| 12 | Bricks per Stroke | 12 with frog · 18 without frog · 16 (190×90×90) · 10 (250×120×75) |
Source: CARD — BW-130 product card. The BW-130 docx lists 69 HP total, an 18' shed height and a way-bin/screw-conveyor/air-compressor package; the card's 60 HP is used here.
Awaiting client confirmationTotal connected load still differs — 60 HP on the product card, 69 HP in the specification .docx — as does shed height (15 ft vs 18 ft). The card figures are published here.
Production Capacity
Every figure below is read directly from Buildwell's own product-on-pallet CAD drawings for the BW-130 — the same drawings issued with the machine. Each tile shows how many finished units come off a single press stroke.

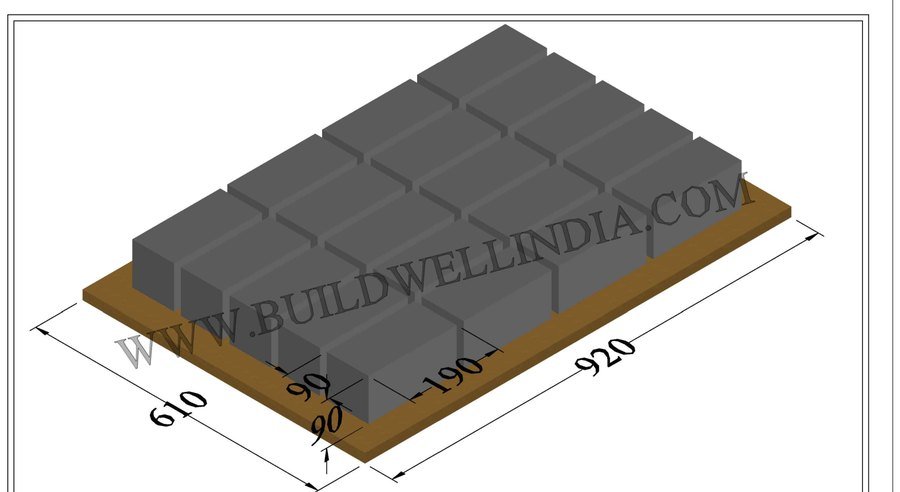

Fly Ash Brick190 × 90 × 90 mm
20pcs per stroke

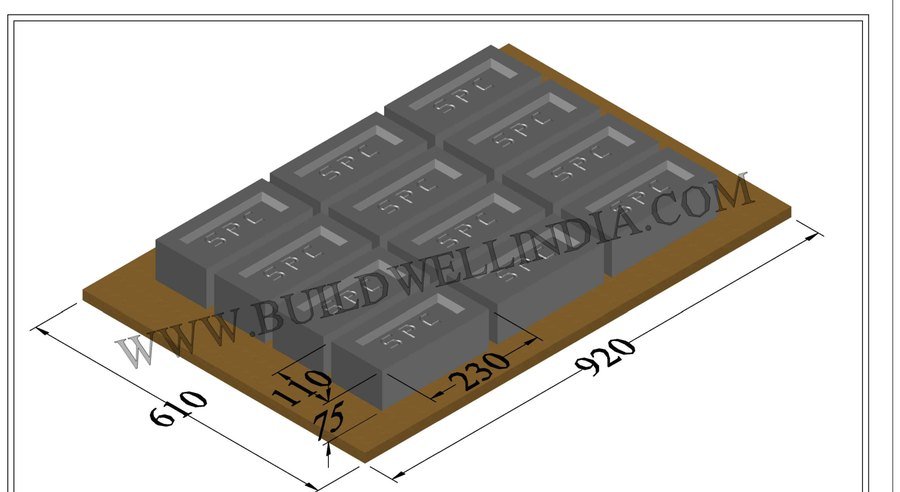

Fly Ash Brick230 × 110 × 75 mm
12pcs per stroke

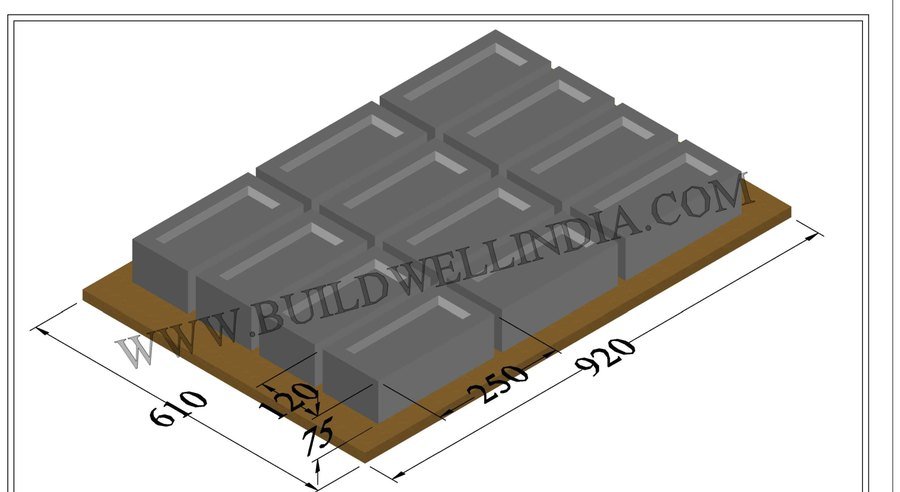

Fly Ash Brick250 × 120 × 75 mm
12pcs per stroke
Units per hour and per shift depend on cycle time, mix and curing arrangement at your site. Ask our team for a shift projection for your chosen size.
Technology Features
01
Hydraulic Vibro-Compaction
Simultaneous top pressure and table vibration compacts the mix to a uniform density right through the unit — not just at the surface.
02
Multi-Mould Interchange
Moulds swap out to change product size and shape, so one press covers several product families without a second machine.
03
Hardened Mould Steel
Mould boxes and tamper heads are built from hardened steel to hold dimensional tolerance across long production runs.
04
Three-Phase Power Pack
A dedicated hydraulic power pack drives the press cycle, with grade-68 hydraulic oil and filtration on the return line.
05

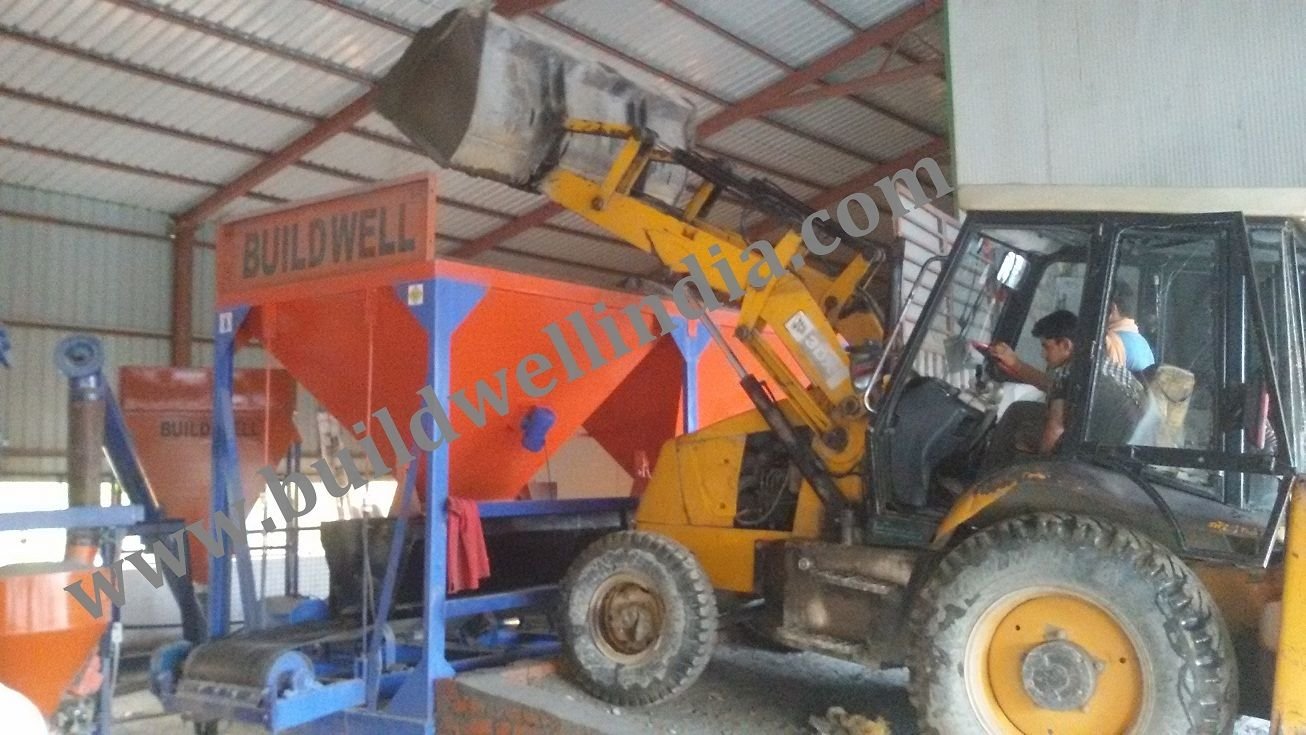

Pan Mixer Integration
The pan mixer is matched to the press cycle time so the machine is never waiting on mix, and the mix is never sitting.
06
Pallet Conveyor & Green Handling
Green units leave the press on a steel pallet and travel out on conveyor, so they are never lifted by hand while wet.
07
Colour Face Layer Option
A separate colour mixer drum lays a pigmented face on pavers, giving colour where it is seen without pigmenting the full section.
08
Operator Control Panel
Cycle, vibration time and press dwell are set at the panel, so output quality does not depend on operator feel.
09
Civil Drawings Supplied
Foundation and shed layout drawings are issued ahead of dispatch so erection is planned before the machine arrives.
10
Trained On Site
Your operators are trained on operation, mould change and routine maintenance as part of commissioning.

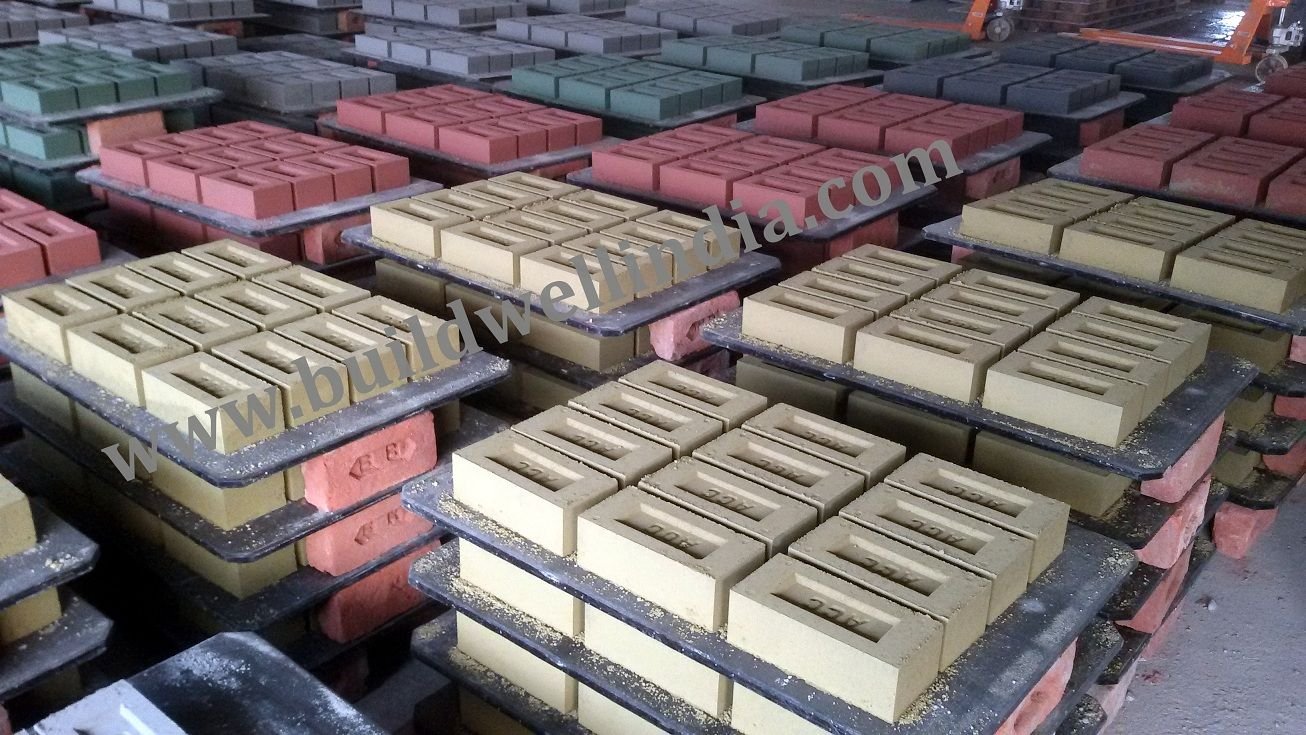

What the BW-130 makes
Get BW-130 pricing
Direct from the manufacturer. No reseller markup, no call centre — your enquiry reaches our Bhuj works.
