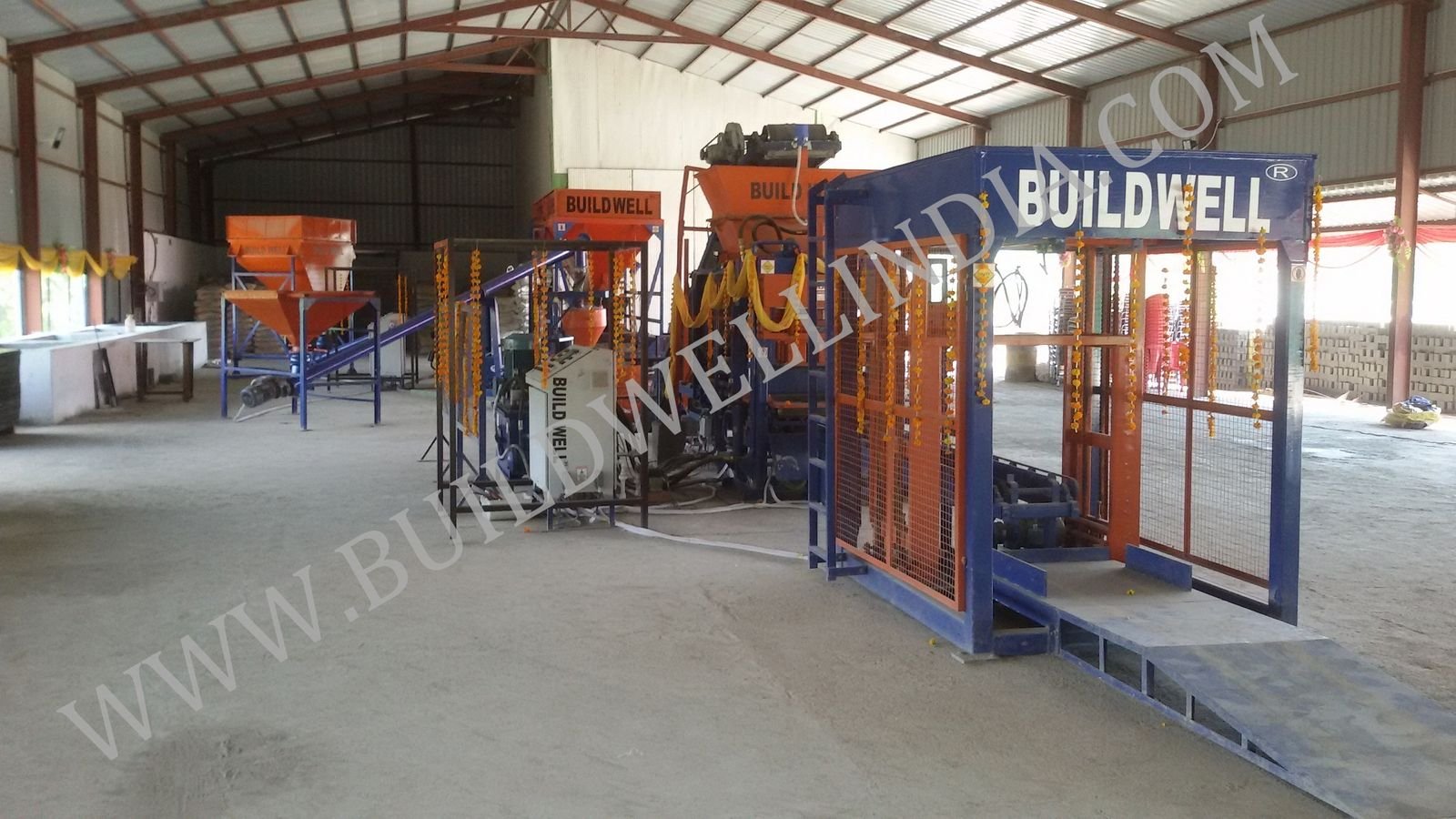

The Machine
A 14-brick fully automatic line with its own 12 HP batching system and a 4 HP stacker. The widest pallet in the range at 980 mm, and the model Buildwell supplies an ideal site-construction layout drawing for.
25,000 bricks / shift14 bricks per stroke
14 Bricks Automatic PlantPlant type
Machine Video
Filmed on a working BW-4-14 line — no stand-ins, no stock footage.
BW-4-14 in productionReal footage from a Buildwell installation

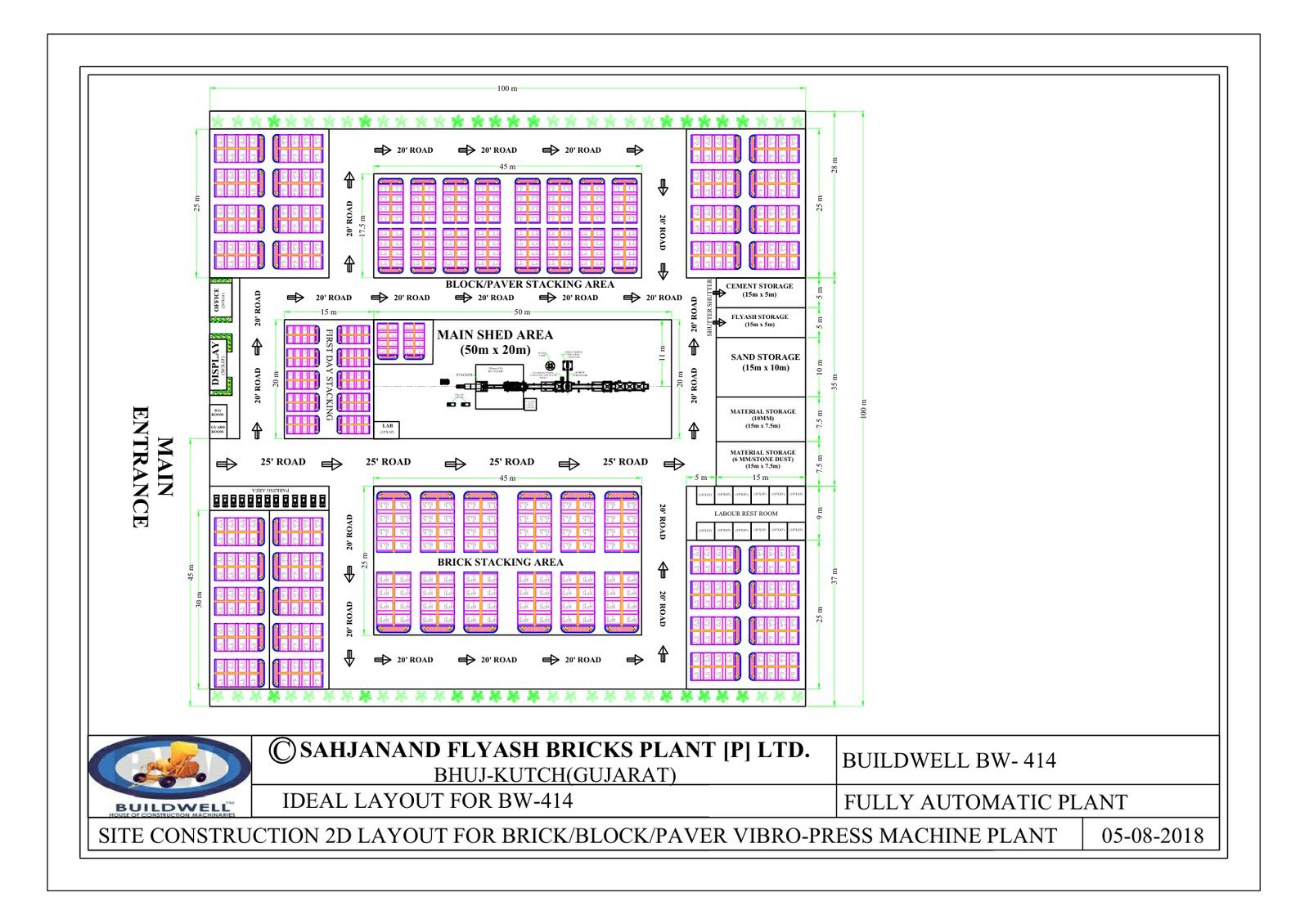

Plant Layout
How the BW-4-14 sits on site — press, mixer, conveyor and curing area.
Civil drawings supplied
Foundation, shed and layout drawings are issued to you in advance of dispatch, so erection can be planned before the machine reaches site.
Technical Specification
| # | Parameter | BW-4-14 |
|---|---|---|
| 1 | Main Press | 10 HP, 3 Ph |
| 2 | Vibrators | 5 HP, 3 Ph × 2 Nos. |
| 3 | Green Brick Conveyor | 2 HP, 3 Ph |
| 4 | Conveyor | 2 HP, 3 Ph |
| 5 | Trolley Feeders | 2 HP, 3 Ph |
| 6 | Pan Mixer | 20 HP + 2 HP, 3 Ph |
| 7 | Stacker | 4 HP, 3 Ph |
| 8 | Batching System | 12 HP, 3 Ph |
| 9 | Total Connected Load | 64 HP |
| 10 | Production Capacity | 25,000 bricks / shift |
| 11 | Shed Size | 60' × 120' × 18' height |
| 12 | Land Required | 5,500 sq.m. |
| 13 | Labour | 2 skilled, 12 unskilled |
| 14 | Pallet Size | 605 × 980 × 25 mm |
Source: DOCX — MACHINE TECHNICAL DETAILS.docx supplied in the BW-414 folder.
Awaiting client confirmationModel code appears as BW-4-14 in the asset folder and the client notes file, and as BW-4-16 in the initial brief — BW-4-14 is used here. The notes file also describes it as 2-in-1, but its pallet drawings cover bricks, blocks and pavers, so it is presented as 3-in-1. Please confirm both.
Production Capacity
Every figure below is read directly from Buildwell's own product-on-pallet CAD drawings for the BW-4-14 — the same drawings issued with the machine. Each tile shows how many finished units come off a single press stroke.
Fly Ash Brick190 × 90 × 90 mm
20pcs per stroke

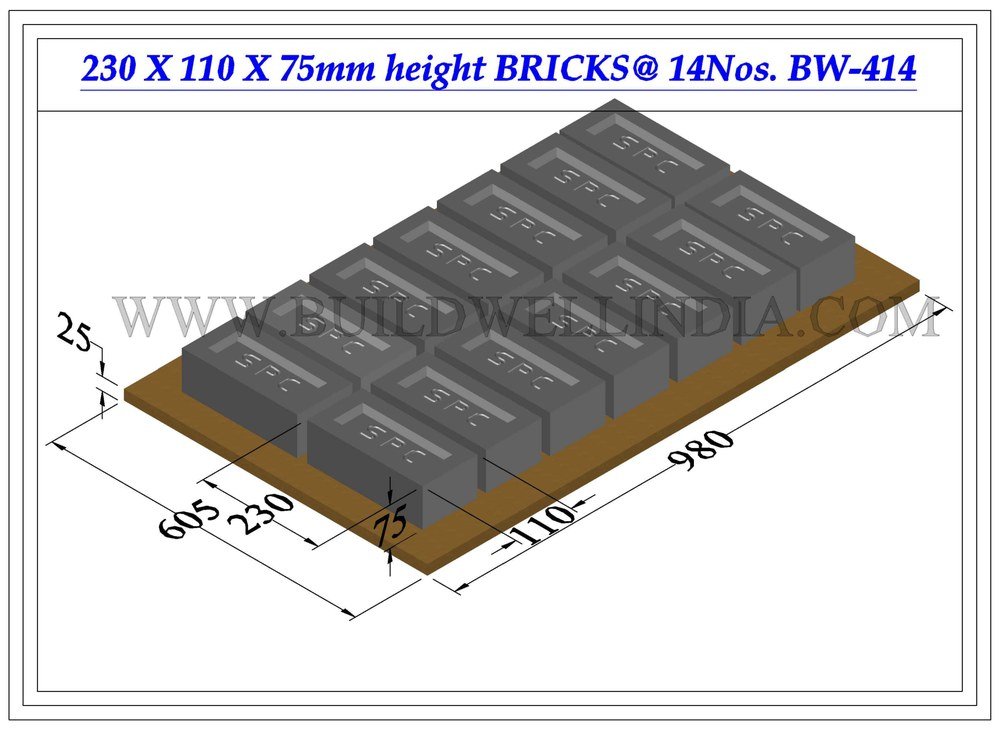

Fly Ash Brick230 × 110 × 75 mm
14pcs per stroke
Fly Ash Brick250 × 120 × 75 mm
12pcs per stroke

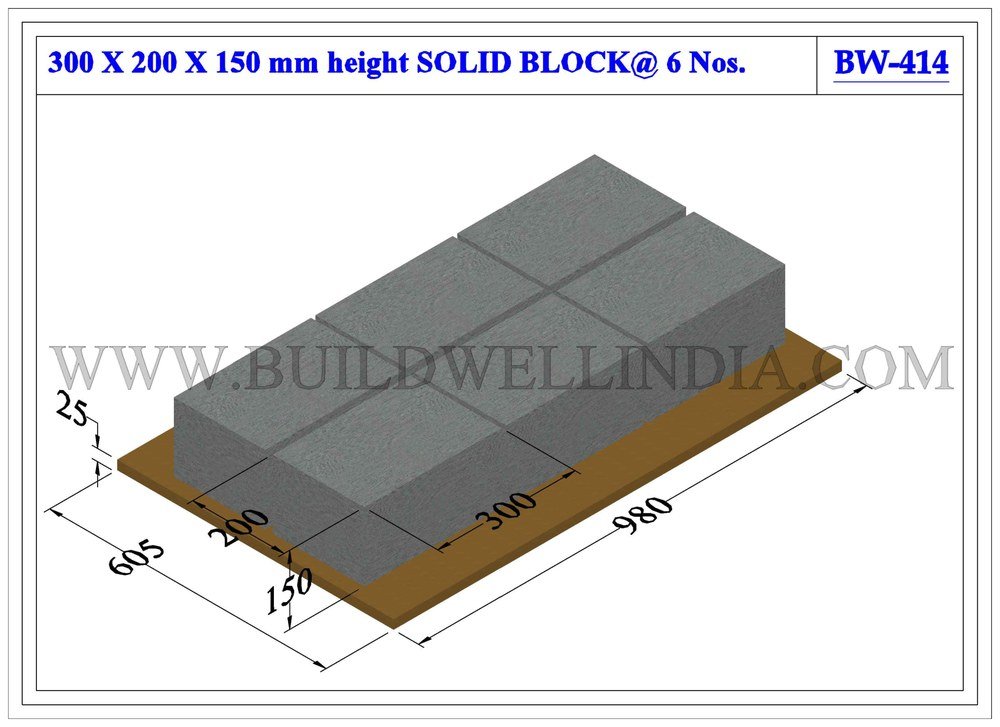

Solid Block300 × 200 × 150 mm
6pcs per stroke

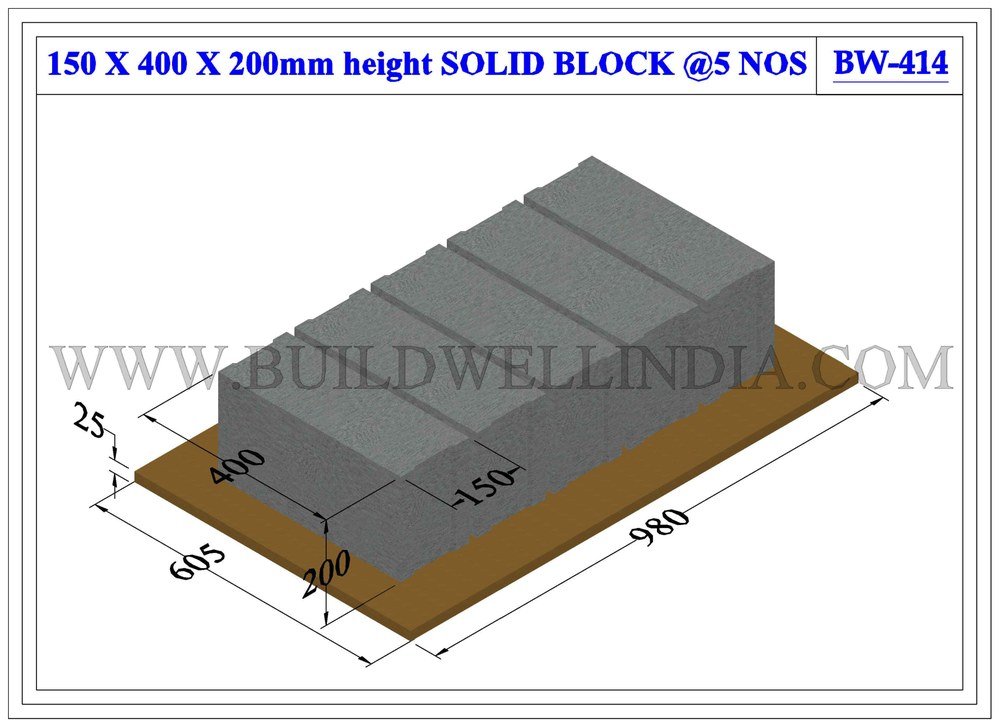

Solid Block400 × 150 × 200 mm
5pcs per stroke
Hollow Block400 × 150 × 200 mm
5pcs per stroke

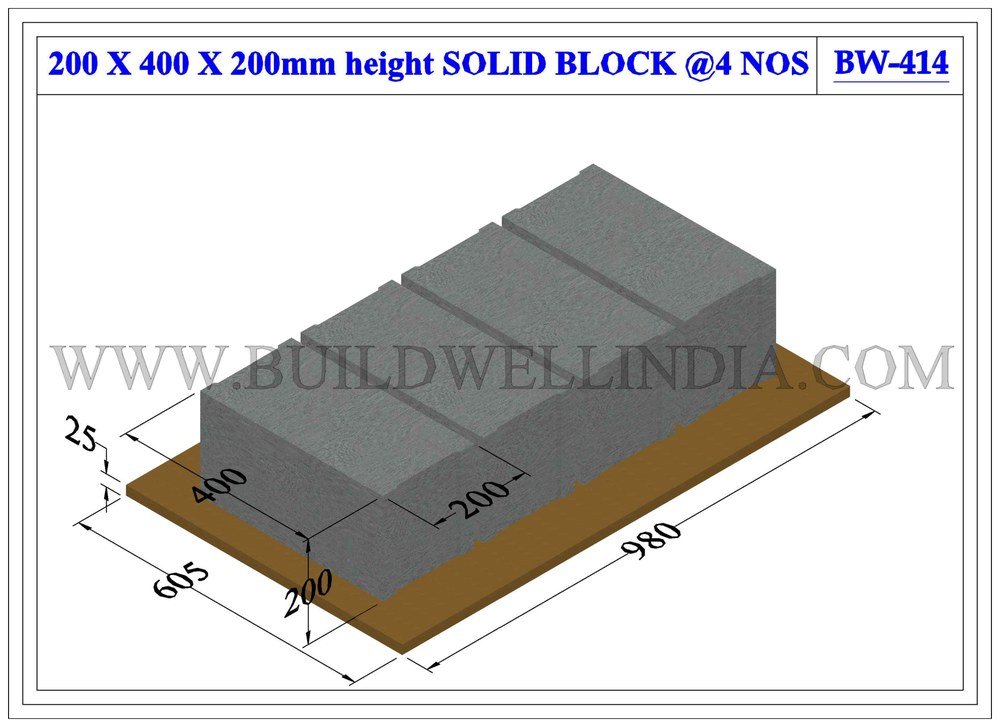

Solid Block400 × 200 × 200 mm
4pcs per stroke
Hollow Block400 × 200 × 200 mm
4pcs per stroke
I-Shape Paver200 × 165 mm
10pcs per stroke
Rectangular Paver200 × 100 mm
16pcs per stroke
Zig-Zag Uni-Paver225 × 112.5 mm
14pcs per stroke
Units per hour and per shift depend on cycle time, mix and curing arrangement at your site. Ask our team for a shift projection for your chosen size.
Technology Features
01
Hydraulic Vibro-Compaction
Simultaneous top pressure and table vibration compacts the mix to a uniform density right through the unit — not just at the surface.
02
Multi-Mould Interchange
Moulds swap out to change product size and shape, so one press covers several product families without a second machine.
03
Hardened Mould Steel
Mould boxes and tamper heads are built from hardened steel to hold dimensional tolerance across long production runs.
04
Three-Phase Power Pack
A dedicated hydraulic power pack drives the press cycle, with grade-68 hydraulic oil and filtration on the return line.
05
Pan Mixer Integration
The pan mixer is matched to the press cycle time so the machine is never waiting on mix, and the mix is never sitting.
06
Pallet Conveyor & Green Handling
Green units leave the press on a steel pallet and travel out on conveyor, so they are never lifted by hand while wet.
07
Colour Face Layer Option
A separate colour mixer drum lays a pigmented face on pavers, giving colour where it is seen without pigmenting the full section.
08
Operator Control Panel
Cycle, vibration time and press dwell are set at the panel, so output quality does not depend on operator feel.
09
Civil Drawings Supplied
Foundation and shed layout drawings are issued ahead of dispatch so erection is planned before the machine arrives.
10
Trained On Site
Your operators are trained on operation, mould change and routine maintenance as part of commissioning.
What the BW-4-14 makes
Get BW-4-14 pricing
Direct from the manufacturer. No reseller markup, no call centre — your enquiry reaches our Bhuj works.
