Paver Block
Zig-zag, I-shape and rectangular pavers with a colour face layer, pressed and cured on pallet.
Paver Block Gallery
Zig-zag, I-shape and rectangular pavers with a colour face layer, pressed and cured on pallet.
Paver Block Making Machine Manufacturer
Paver blocks are the highest-value product a Buildwell plant makes. They sell by the square metre rather than by the piece, they carry a colour premium, and the demand comes from municipal footpath and parking work as much as from private landscaping.
The technology that makes them economic is the two-layer press. A structural base mix gives the paver its strength and thickness; a thin pigmented face mix, laid from a separate colour mixer drum, gives it its colour and wearing surface. Pigment is expensive — putting it only in the top layer is what makes colour pavers worth producing.
Buildwell presses zig-zag (uni-paver), I-shape and rectangular profiles at 60, 80 and 100 mm thickness. The 3-in-1 multipurpose machines produce them alongside bricks and blocks; the BW-123 is a dedicated vibro-table paver plant for producers who want a line committed to pavers.
Key features
- Shapes — zig-zag / uni-paver, I-shape and rectangular, plus custom moulds.
- Thickness — 60 mm for footpath, 80 mm for parking and light traffic, 100 mm for heavy duty.
- Colour face layer — separate pigmented mix laid by a dedicated colour mixer drum.
- Interlock — the profile transfers load between units, so the surface behaves as a whole.
- Liftable and reusable — pavers can be taken up for services and relaid.
- Margin — the highest value-per-tonne product in the Buildwell range.
Paver Block Making Process
1Base mix
Stone dust, aggregate and cement are batched and mixed for the structural layer.
2Colour mix
Oxide pigment is mixed into a separate finer face mix in the colour drum.
3Two-layer fill
The base layer is laid into the mould, then the colour face layer on top.
4Pressing
Ram pressure and vibration compact both layers into a single bonded unit.
5Curing
Water curing brings the paver to its M30–M50 compressive strength.
Technical Specification
| # | Parameter | Detail |
|---|---|---|
| 1 | Technical Name | Paver Block |
| 2 | Types | Colour Interlocking Paver Blocks |
| 3 | Sizes | Zig-Zag / Uni-paver 225 × 112.5 × 80 mm · I-Shape 200 × 165 × 80 mm · Rectangular 200 × 100 × 60/80 mm · Custom moulds to order |
| 4 | Application | Footpaths, parking bays, driveways, industrial yards, plaza and landscape paving |
| 5 | Raw Material | Stone dust, aggregate, OPC 53 cement, oxide pigment for the face layer, water |
| 6 | Standard | IS 15658:2006 — Precast concrete blocks for paving |
Typical Product Values
Achievable on a correctly operated plant with a properly designed mix. Results depend on raw material, mix design and curing.
◆
30–50 MPa (M30–M50)
Compressive Strength
◆
Under 6%
Water Absorption
◆
Meets IS 15658 wearing class
Abrasion Resistance
◆
Separate colour mix, 6–8 mm
Face Layer
◆
60 / 80 / 100 mm
Thickness Range
Manufacturable Pavers
Sizes and per-stroke output taken from Buildwell's own product-on-pallet CAD drawings.

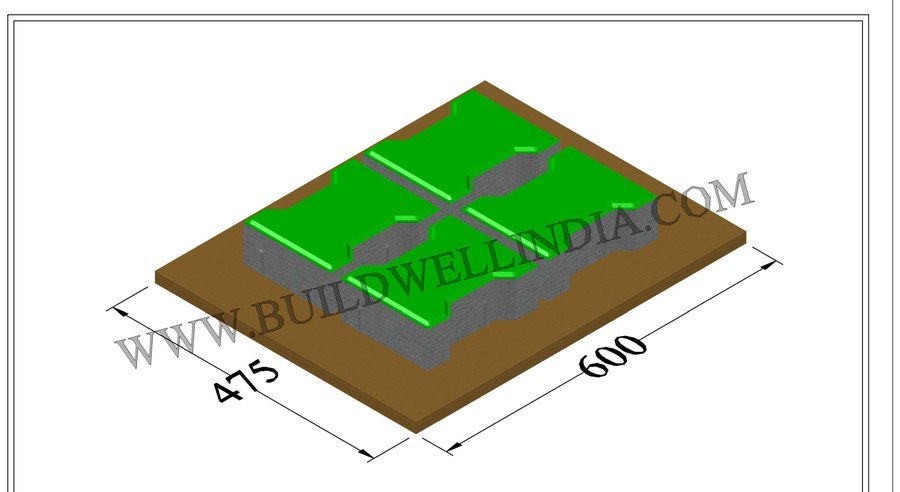

I-Shape Paver
200 × 165 × 80 mm
4pcs/stroke · BW-119/A

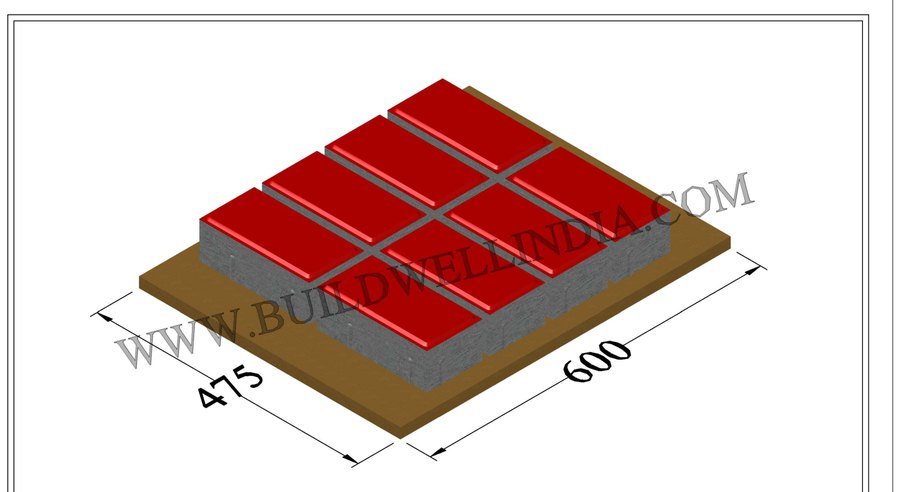

Rectangular Paver
200 × 100 × 80 mm
8pcs/stroke · BW-119/A

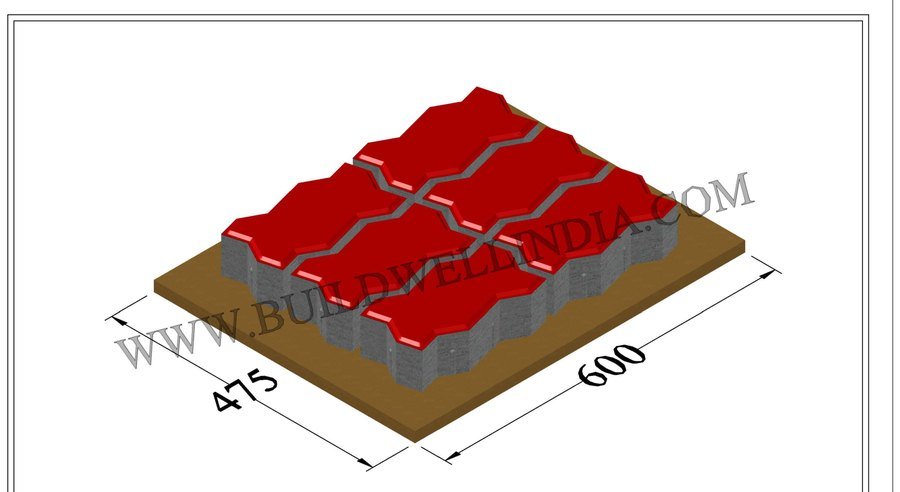

Zig-Zag Uni-Paver
225 × 112.5 × 80 mm
6pcs/stroke · BW-119/A

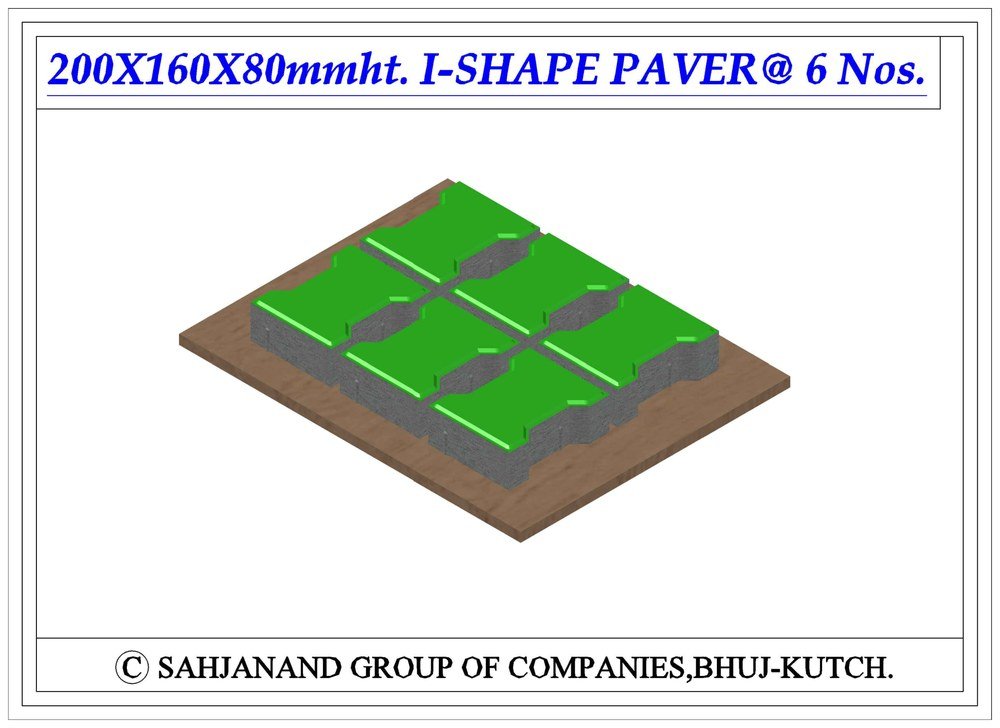

I-Shape Paver
200 × 160 × 80 mm
6pcs/stroke · BW-119

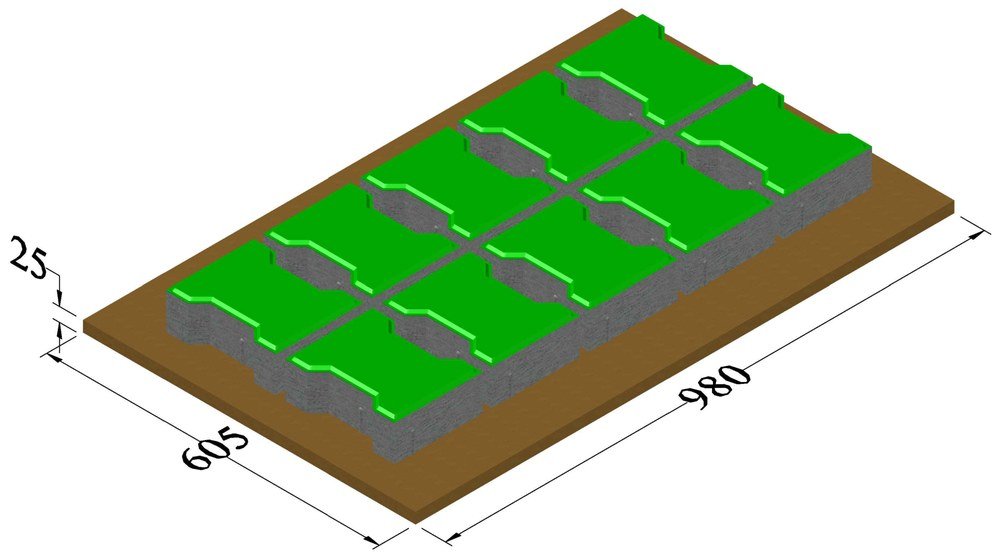

I-Shape Paver
200 × 165 mm
10pcs/stroke · BW-4-14

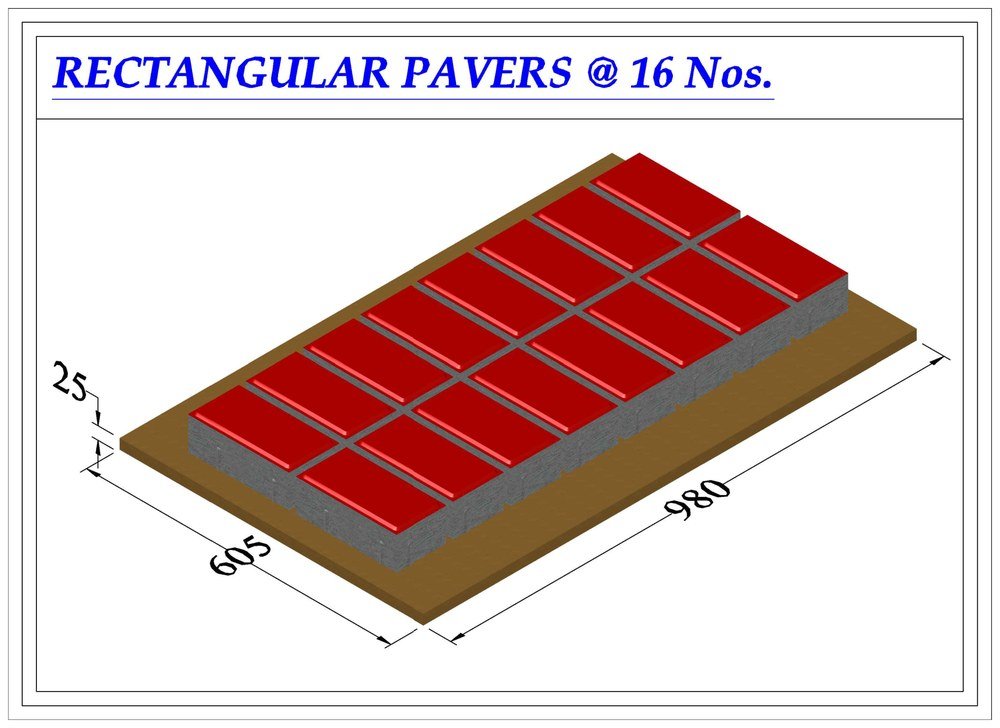

Rectangular Paver
200 × 100 mm
16pcs/stroke · BW-4-14

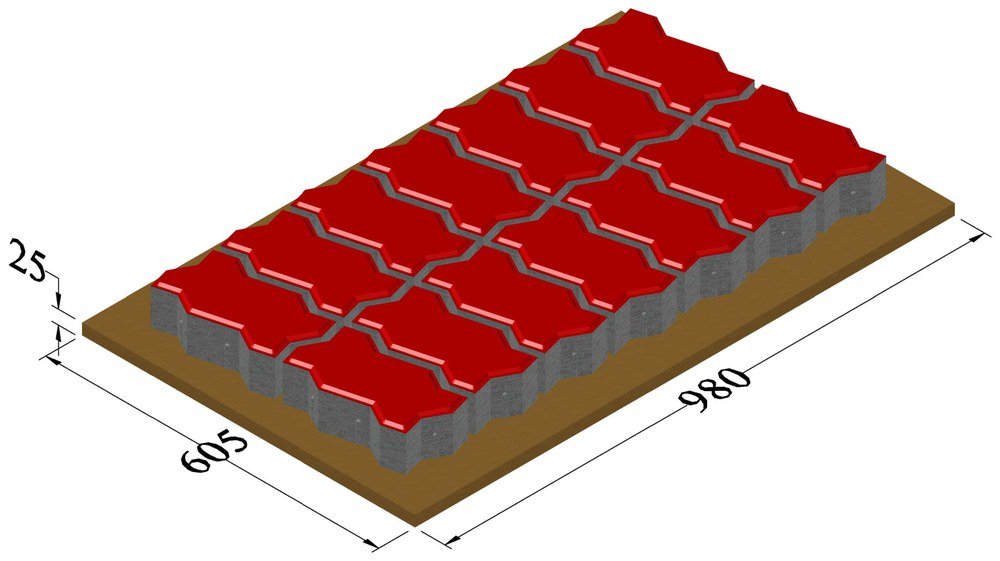

Zig-Zag Uni-Paver
225 × 112.5 mm
14pcs/stroke · BW-4-14
Machines that make Pavers
Semi-Automatic
BW-123 Interlocking Paver Plant
Specialist Plant · Colour Interlocking Pavers
Vibro table presscapacity by mould
Built for the colour face layer.
View Machine3-in-1 Multipurpose
BW-119/A (3-in-1)
Automatic · 3-in-1 · 6-Brick Mould
6 bricks / strokebricks, blocks & pavers
Three product families, one compact press.
View Machine3-in-1 Multipurpose
BW-119 (3-in-1)
3-in-1 Machine
16,000 bricks / shift10 bricks per stroke
One line. Bricks, blocks and pavers.
View Machine3-in-1 Multipurpose
BW-4-14 (3-in-1)
14 Bricks Automatic Plant
25,000 bricks / shift14 bricks per stroke
Batching plant, press and stacker under one controller.
View Machine3-in-1 Multipurpose
BW-6-15 (3-in-1)
15 Bricks Automatic Plant
26,000 bricks / shift15 bricks per stroke
The widest pallet Buildwell builds.
