The Machine
A vibrating-table paver press with its own pan mixer and colour drum — the route to zig-zag, I-shape and rectangular pavers with a proper two-layer colour face, without tying up a brick line.
Vibro table presscapacity by mould
Semi-AutomaticPlant type
Machine Video
Filmed on a working BW-123 line — no stand-ins, no stock footage.
BW-123 in productionReal footage from a Buildwell installation
Plant Layout
How the BW-123 sits on site — press, mixer, conveyor and curing area.
Representative drawing
A model-specific layout drawing for this machine was not supplied in the asset pack. The drawing shown is a general Buildwell plant arrangement. Buildwell issues a site-specific civil and foundation drawing once an order is confirmed.
Technical Specification
| # | Parameter | BW-123 |
|---|---|---|
| 1 | Press Type | Hydraulic vibro-table |
| 2 | Product Focus | Colour interlocking pavers |
| 3 | Paver Shapes | Zig-Zag / Uni-paver, I-Shape, Rectangular |
| 4 | Face Layer | Separate colour mix via colour mixer drum |
| 5 | Thickness Range | 60 / 80 / 100 mm |
Source: GAP — no technical specification card, flyer or docx supplied for BW-123.
Awaiting client confirmationNo HP, capacity, shed size or land figures supplied. This page is intentionally light on numbers until the client provides the card.
Technology Features
01
Hydraulic Vibro-Compaction
Simultaneous top pressure and table vibration compacts the mix to a uniform density right through the unit — not just at the surface.
02
Multi-Mould Interchange
Moulds swap out to change product size and shape, so one press covers several product families without a second machine.
03
Hardened Mould Steel
Mould boxes and tamper heads are built from hardened steel to hold dimensional tolerance across long production runs.
04
Three-Phase Power Pack
A dedicated hydraulic power pack drives the press cycle, with grade-68 hydraulic oil and filtration on the return line.
05

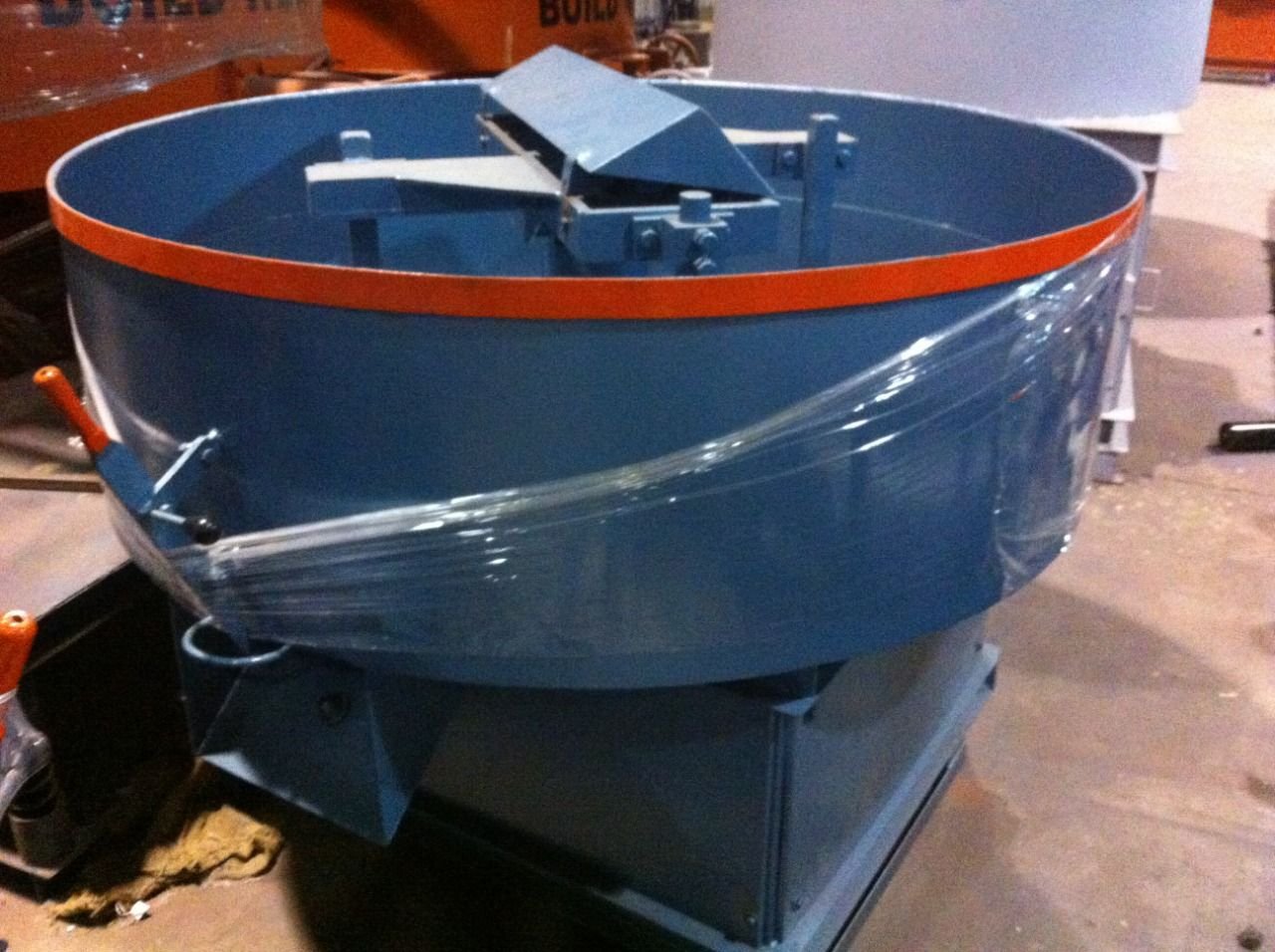

Pan Mixer Integration
The pan mixer is matched to the press cycle time so the machine is never waiting on mix, and the mix is never sitting.
06
Pallet Conveyor & Green Handling
Green units leave the press on a steel pallet and travel out on conveyor, so they are never lifted by hand while wet.
07

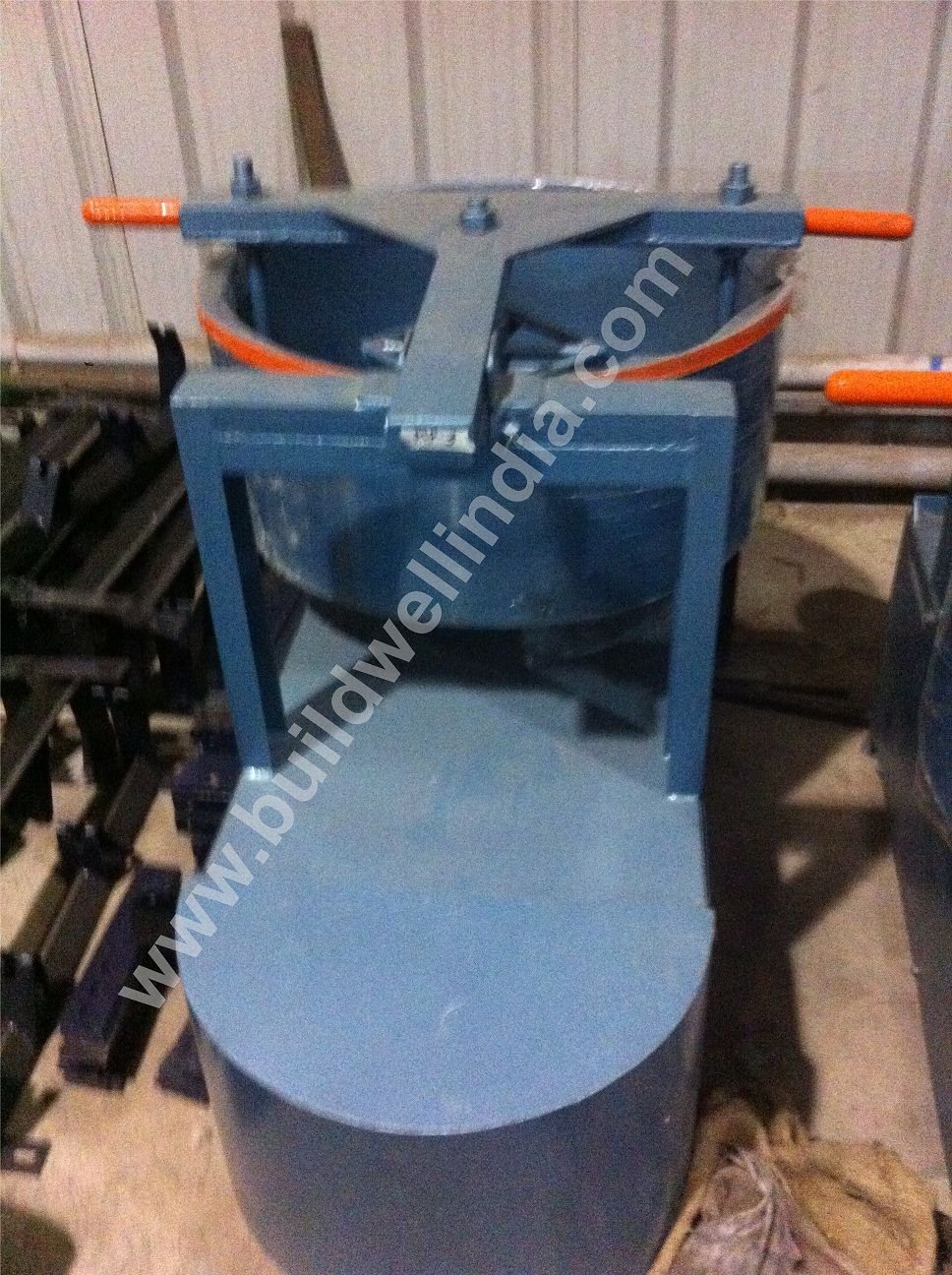

Colour Face Layer Option
A separate colour mixer drum lays a pigmented face on pavers, giving colour where it is seen without pigmenting the full section.
08
Operator Control Panel
Cycle, vibration time and press dwell are set at the panel, so output quality does not depend on operator feel.
09
Civil Drawings Supplied
Foundation and shed layout drawings are issued ahead of dispatch so erection is planned before the machine arrives.
10
Trained On Site
Your operators are trained on operation, mould change and routine maintenance as part of commissioning.
What the BW-123 makes
Get BW-123 pricing
Direct from the manufacturer. No reseller markup, no call centre — your enquiry reaches our Bhuj works.
