The Machine
The compact sibling of the BW-119. Same three-product capability — bricks, blocks and pavers off one pallet line — on a smaller 475 × 600 mm pallet and a shorter bay.
6 bricks / strokebricks, blocks & pavers
3-in-1 MultipurposePlant type
Machine Video
Filmed on a working BW-119/A line — no stand-ins, no stock footage.

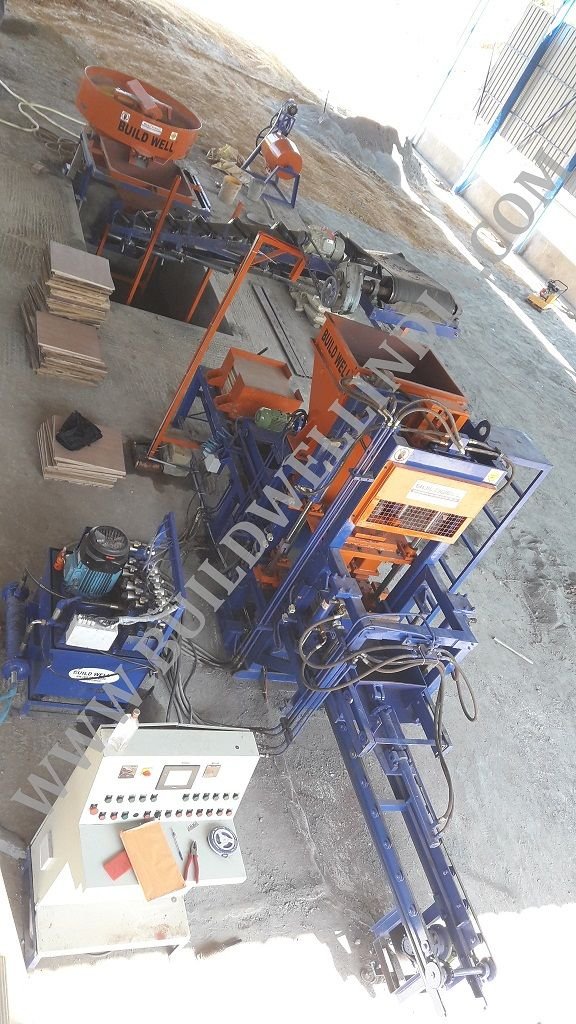

BW-119/A in productionReal footage from a Buildwell installation
Plant Layout
How the BW-119/A sits on site — press, mixer, conveyor and curing area.
Representative drawing
A model-specific layout drawing for this machine was not supplied in the asset pack. The drawing shown is a general Buildwell plant arrangement. Buildwell issues a site-specific civil and foundation drawing once an order is confirmed.
Technical Specification
| # | Parameter | BW-119/A |
|---|---|---|
| 1 | Machine Type | Automatic, multipurpose 3-in-1 |
| 2 | Pallet Size | 475 × 600 × 19 mm |
| 3 | Bricks per Stroke | 10 (190×90×90) · 6 (230×110×75) · 6 (250×120×75) |
| 4 | Blocks per Stroke | 3 (400×150×200) · 2 (400×200×200) · 2 (300×200×150) |
| 5 | Pavers per Stroke | 8 rectangular · 6 zig-zag · 4 I-shape |
Source: PALLET — qty/stroke and pallet size read from the BW-119/A pallet drawings. No electrical or capacity card supplied.
Awaiting client confirmationNo HP, shift capacity, shed size, land or labour figures supplied for BW-119/A.
Production Capacity
Every figure below is read directly from Buildwell's own product-on-pallet CAD drawings for the BW-119/A — the same drawings issued with the machine. Each tile shows how many finished units come off a single press stroke.

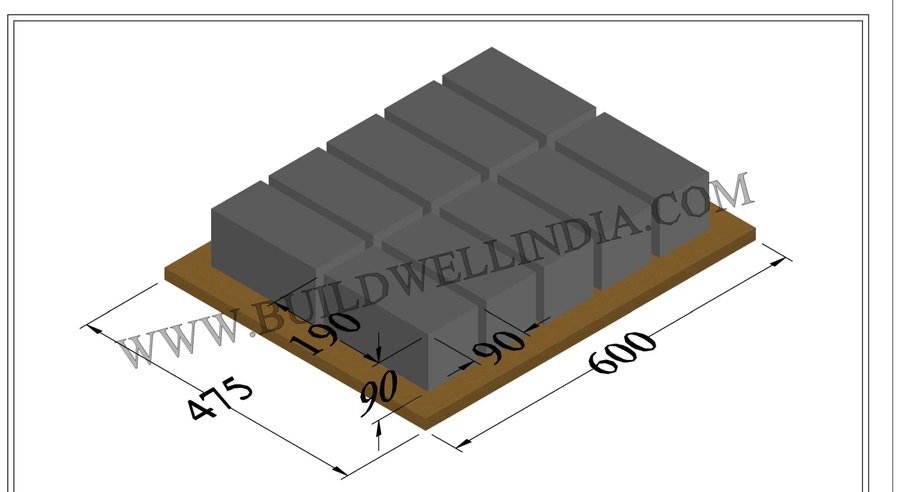

Fly Ash Brick190 × 90 × 90 mm
10pcs per stroke

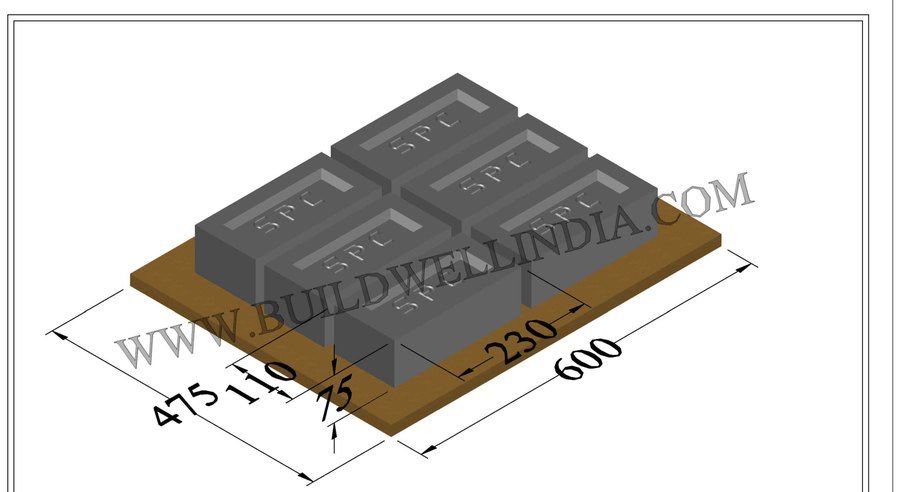

Fly Ash Brick230 × 110 × 75 mm
6pcs per stroke

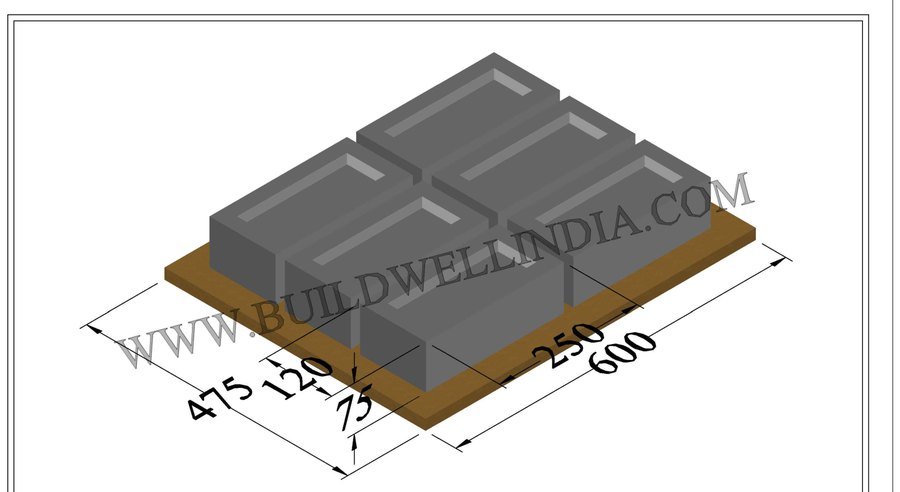

Fly Ash Brick250 × 120 × 75 mm
6pcs per stroke
Solid Block300 × 200 × 150 mm
2pcs per stroke
Solid Block300 × 200 × 200 mm
2pcs per stroke
Solid Block400 × 150 × 200 mm
3pcs per stroke
Solid Block400 × 200 × 200 mm
2pcs per stroke
Hollow Block400 × 200 × 200 mm
2pcs per stroke
I-Shape Paver200 × 165 × 80 mm
4pcs per stroke
Rectangular Paver200 × 100 × 80 mm
8pcs per stroke
Zig-Zag Uni-Paver225 × 112.5 × 80 mm
6pcs per stroke
Units per hour and per shift depend on cycle time, mix and curing arrangement at your site. Ask our team for a shift projection for your chosen size.
Technology Features
01
Hydraulic Vibro-Compaction
Simultaneous top pressure and table vibration compacts the mix to a uniform density right through the unit — not just at the surface.
02
Multi-Mould Interchange
Moulds swap out to change product size and shape, so one press covers several product families without a second machine.
03
Hardened Mould Steel
Mould boxes and tamper heads are built from hardened steel to hold dimensional tolerance across long production runs.
04
Three-Phase Power Pack
A dedicated hydraulic power pack drives the press cycle, with grade-68 hydraulic oil and filtration on the return line.
05
Pan Mixer Integration
The pan mixer is matched to the press cycle time so the machine is never waiting on mix, and the mix is never sitting.
06
Pallet Conveyor & Green Handling
Green units leave the press on a steel pallet and travel out on conveyor, so they are never lifted by hand while wet.
07
Colour Face Layer Option
A separate colour mixer drum lays a pigmented face on pavers, giving colour where it is seen without pigmenting the full section.
08
Operator Control Panel
Cycle, vibration time and press dwell are set at the panel, so output quality does not depend on operator feel.
09
Civil Drawings Supplied
Foundation and shed layout drawings are issued ahead of dispatch so erection is planned before the machine arrives.
10
Trained On Site
Your operators are trained on operation, mould change and routine maintenance as part of commissioning.
What the BW-119/A makes
Get BW-119/A pricing
Direct from the manufacturer. No reseller markup, no call centre — your enquiry reaches our Bhuj works.
