The Machine
An 8-brick press that fits a 20 × 60 foot bay. Lower connected load than the 9-brick BW-120 with capacity in the same bracket — the value pick of the automatic tier.
13,000 bricks / shift8 bricks per stroke
8 Bricks Automatic PlantPlant type
Machine Video
Filmed on a working BW-128 line — no stand-ins, no stock footage.
BW-128 in productionReal footage from a Buildwell installation
Plant Layout
How the BW-128 sits on site — press, mixer, conveyor and curing area.
Representative drawing
A model-specific layout drawing for this machine was not supplied in the asset pack. The drawing shown is a general Buildwell plant arrangement. Buildwell issues a site-specific civil and foundation drawing once an order is confirmed.
Technical Specification
| # | Parameter | BW-128 |
|---|---|---|
| 1 | Main Press | 15 HP |
| 2 | Cooling Pump | 0.5 HP |
| 3 | Vibrator | 2 HP + 0.5 HP |
| 4 | Conveyor | 2 HP |
| 5 | Pan Mixer | 10 HP |
| 6 | Total Connected Load | 30 HP |
| 7 | Production Capacity | 13,000 bricks / shift |
| 8 | Shed Size | 20' × 60' × 12' height |
| 9 | Land Required | 2 acre |
| 10 | Labour | 2 skilled, 8 unskilled |
| 11 | Pallet Size | 600 × 600 × 16 mm |
Source: DOCX — MACHINE SPECIFICATION.docx supplied in the BW-128 folder.
Production Capacity
Every figure below is read directly from Buildwell's own product-on-pallet CAD drawings for the BW-128 — the same drawings issued with the machine. Each tile shows how many finished units come off a single press stroke.

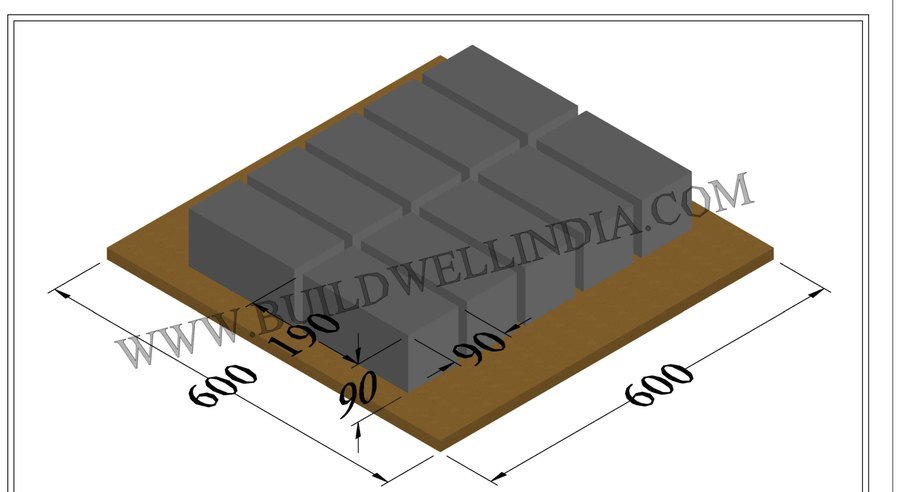

Fly Ash Brick190 × 90 × 90 mm
10pcs per stroke

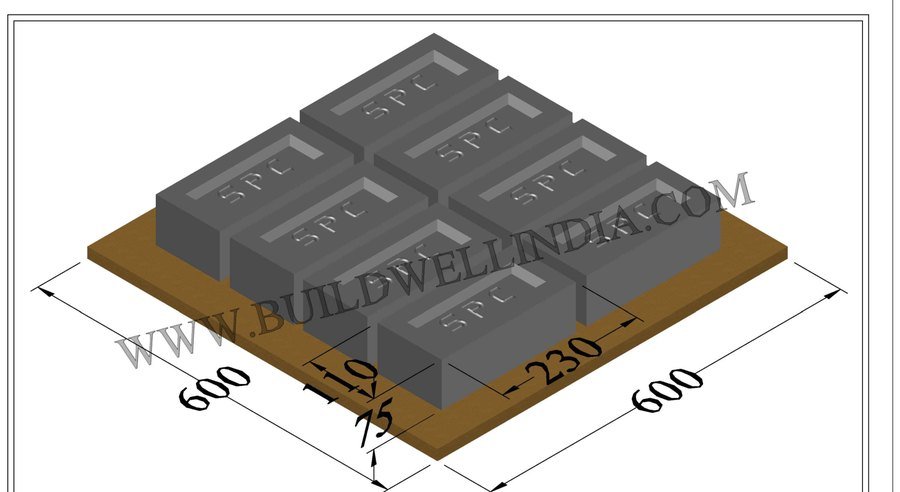

Fly Ash Brick230 × 110 × 75 mm
8pcs per stroke

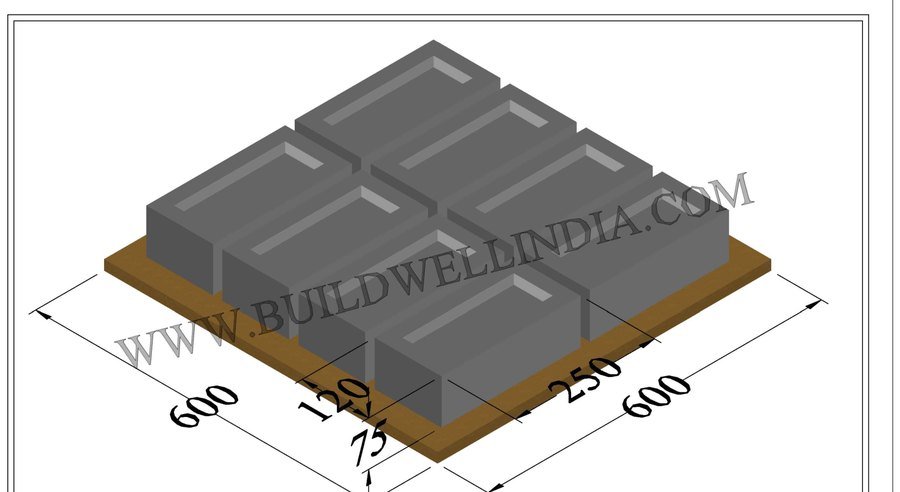

Fly Ash Brick250 × 120 × 75 mm
16pcs per stroke
Units per hour and per shift depend on cycle time, mix and curing arrangement at your site. Ask our team for a shift projection for your chosen size.
Technology Features
01
Hydraulic Vibro-Compaction
Simultaneous top pressure and table vibration compacts the mix to a uniform density right through the unit — not just at the surface.
02
Multi-Mould Interchange
Moulds swap out to change product size and shape, so one press covers several product families without a second machine.
03
Hardened Mould Steel
Mould boxes and tamper heads are built from hardened steel to hold dimensional tolerance across long production runs.
04
Three-Phase Power Pack
A dedicated hydraulic power pack drives the press cycle, with grade-68 hydraulic oil and filtration on the return line.
05
Pan Mixer Integration
The pan mixer is matched to the press cycle time so the machine is never waiting on mix, and the mix is never sitting.
06
Pallet Conveyor & Green Handling
Green units leave the press on a steel pallet and travel out on conveyor, so they are never lifted by hand while wet.
07
Colour Face Layer Option
A separate colour mixer drum lays a pigmented face on pavers, giving colour where it is seen without pigmenting the full section.
08
Operator Control Panel
Cycle, vibration time and press dwell are set at the panel, so output quality does not depend on operator feel.
09
Civil Drawings Supplied
Foundation and shed layout drawings are issued ahead of dispatch so erection is planned before the machine arrives.
10
Trained On Site
Your operators are trained on operation, mould change and routine maintenance as part of commissioning.
What the BW-128 makes
Get BW-128 pricing
Direct from the manufacturer. No reseller markup, no call centre — your enquiry reaches our Bhuj works.
